Cloth /Fabric laminating and slitting machine

Product Description

Product Description

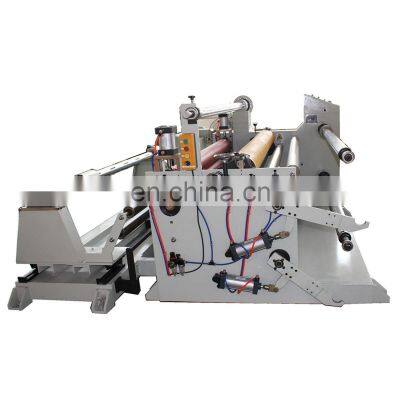

Colth/Fabric laminating and slitting machine
Funcional characteristics:
This machine is sticking and slitting equipment of high precision and high sensitivity, with inflatable bearing is used for feeding and receiving materials.
Imported magnetic powder clutch is adopted to control the tension. Imported gas sensitive device is adopted to detect the rectification of rolling,
with fully automatic hydraulic rectification control. Automatic detection, rectification and metering can be realized.
It is characterized by accurate slitting, fast slitting speed, ease of operation and maintenance, etc.
Purpose:
It is applicable for the slitting tooling of industrial adhesive tape, cellophane tape, protective film, copper foil, aluminum foil, OPP, PE, PVC, sheet, cloth, etc.
This mahcine is widely used in the industries such as printing, packing, electronics, leather, clothes making, plastic, etc.

Model1300 multifunction sticking slitting machine1600 multifunction sticking slitting machine
Max Feeding Width ( mm )13001600
Main Engineer Power ( KW )66
Speed (T/M )8080
Size ( mm )2400*2000*13002400*2300*1300
Weight (kg)12001500
Feeding diameter ( mm )600800
Rewinding diameter ( mm )450450
precision ( mm )±0.10±0.10
Power380V 50HZ380V 50HZ
