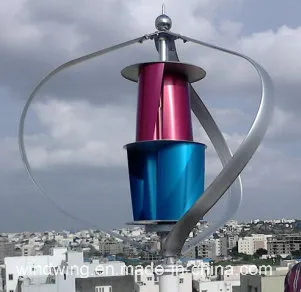

600W Maglev Vertical Windmill Turbine with Ce Certificate

Product Description

Vertical axis wind turbine
Lowest cut-in wind speed
1 m/s for power production
No noise, no vibrations
(sound level< 25 dB at 7 m/s from 10 m distance)

Adaptable for hybrid solutions
with solar and other sources of energy
Permanent power supply
from wind/solar and continuous battery charging
Technically advanced Maglev generator
No mechanical friction
Best price-performance ratio All weather resistant
(rain, ice, heat, salt, sand)

Independent of wind direction
Suitable for roof fixation
Maintenance-free
Safety for people and nature
Technical Data

PARAMETER	VERTICAL WIND TURBINE MODEL NUMBER
	WKV-600
Rated Power	600w
Size(Height / Diameter)	1.32/1.32(m)
Blades Material	aluminum alloy
Start-up Wind Speed	1m/s
Minimum Power Generation Wind Speed	2m/s
Cut-in wind speed	2.5m/s
Rated Wind Speed	12m/s
Cut out Wind Speed	15m/s
Survival Wind Speed	65m/s
Generator Type	AC, 3 phases
Controller Output Voltage	24\48V
Controller Braking System	3-Phase short circuit by NFB brake
Ambient Temperature	. -30~50 °C

Power Curve
Optional Color
Products Details
Package and Delivery
Projects
Certification
Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed
4. Solved the problem with you during using our products
Thank for your visiting

---
