US$2,666.00
|
10 Tons
(MOQ)
|
Basic Info.
Manufacturing Technique
Pressurized Vibration
Advantage
Graphite Electrode Is More and More Wide
Application
Arc Furnace and Ladle Furnace
Model
We Can Supply High Purity Graphite Electrode.
Specifications
RP, Np, HD, Shp, UHP
Refractoriness (ºC)
1770< Refractoriness< 2000
Feature
Instant Materials
Transport

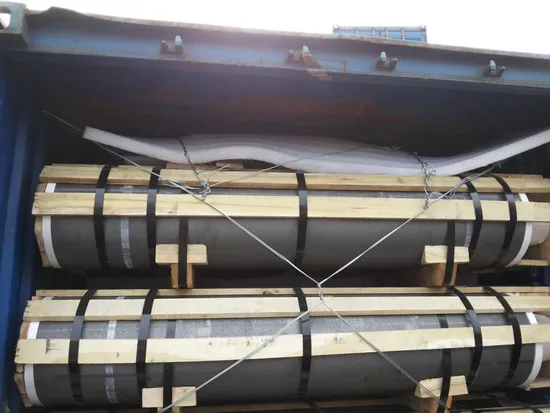

Packed in Water Proof Wooden Pallets
Carbon Content
High-Carbon
Transport Package
Standard Exporting Pallet
Specification
RP, NP, HD, SHP, UHP
Production Capacity
50000mt Per Year, 50000mt/Year
Product Description
At the forefront of technological advancement, Sinometal Machinery Corp. masterfully blends innovative manufacturing with strategic trading skills, establishing itself as a leader in both the metallurgy and carbon industries.
Our top-of-the-line graphite electrodes play an indispensable role in enhancing the efficiency of Electric Arc Furnaces and Ladle Furnaces. These are key to producing high-grade alloy steels and various nonferrous metals, ensuring optimal performance for every furnace operation.
We are proud to export a wide array of premium-sized Graphite Electrodes, tailored to meet diverse industrial needs:
Normal Power Graphite Electrodes - (NP) - Impregnation Power Graphite Electrodes - (IP) -
High Power Graphite Electrodes - (HP) -
Special Power Graphite Electrodes - (SHP) -
Ultra High Power Graphite Electrodes - (UHP)
Our extensive range of graphite electrodes is available in various diameters to cater to your specific requirements:
Ф75mm - Ф700mm
| Item | Unit | Nominal Diameter |
| UHP | HP | RP |
| Φ300-400 | ≥Φ450 | Φ250-400 | ≥Φ450 | Φ250-400 | Φ450-600 |
| Electric Resistivity | electrode | μΩ·m | ≤5.0 | ≤5.5 | ≤6.0 | ≤6.5 | ≤8.5 | ≤9.0 |
| Nipple | ≤4.0 | ≤4.5 | ≤5.5 |
| Transverse Strength | electrode | MPa | ≥15.0 | ≥10.5 | ≥8.0 | ≥7.0 |
| Nipple | ≥24.0 | ≥20.0 | ≥16.0 |
| Young's Modulus | electrode | GPa | ≤14.0 | ≤12.0 | ≤9.3 |
| Nipple | ≤18.0 | ≤16.0 | ≤14.0 |
| Bulk Density | electrode | g/cm3 | ≥1.68 | ≥1.65 | ≥1.54 |
| Nipple | ≥1.76 | ≥1.74 | ≥1.70 |
| Coefficient of thermal expansion | electrode | 10-6/ºC | ≤1.5 | ≤2.0 | ≤2.5 |
| Nipple | ≤1.2 | ≤1.6 | ≤2.0 |
| Ash | % | ≤0.2 | ≤0.2 | ≤0.2 |
In all our endeavors, we uphold our unwavering commitment to 'Quality first, reputation above all,' enabling us to deliver products of the highest standard and unparalleled service to a global clientele.
We eagerly await your valuable correspondence and look forward to forging a successful partnership!
With heartfelt gratitude and our sincerest regards,
Jack
SINOMETAL MACHINERY CORP.
Address: Add. Lanfeng Lane, No. 3, Shahekou District, Dalian, 116001
Website: Http://sinometal.en.made-in-china.com
>>
