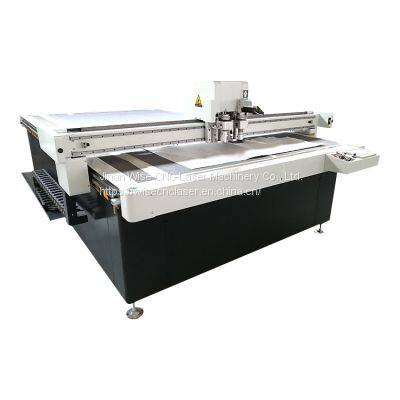

Description & Specifications of quoted machine with vibrating tool+creasing wheel:
|
X working size
| 1550mm
|
Y working size
| 2500mm
|
Z working size
| 10mm
|
Cutting head
| cnc oscillating knife cutting head + creasing roller
|
Display way
| English LED touch screen
|
Machine table
| Suction Table, suitable for textile, sponge, foam, corrugated board, paper, plastic film and other material
|
Data transfer way
| Intel
|
Vacuum pump
| 9KW air type vacuum pump
|
Driving system
| Taiwan delta servo driver and motor
|
Control system
| RD 6 axis ontrol system
|
Guiding system
| Taiwan TBI square rail
|
Tool sensor
| With, red dot
|
Transmission
| Y rack pinion, XZ synchronous steel belt
|
Cutting speed
| 30m/min
|
Traveling speed
| 50m/min
|
Weight
| About 800kgs
|
Size
| 2250*3300*1650mm
|
Power
| 380V 50HZ 3 phase/ 220v 50HZ 3 phase
|
Software
| Equipped with machine
|
