Plastic film heat seal tester ASTM F2029 lab use heat seal test machine

Product Details

Product Description

Product Description

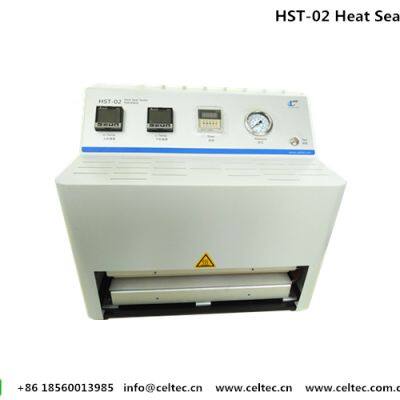

Plastic film heat seal tester simulates the heat sealprocess during production. The result of heat seal is expressed by sealing temperature, time and pressure.
It follows ASTM F2029 standard.
Plastic film heat seal tester uses P.I.D. for precise sealing temperature control. The key of a heat sealer is uniform heating, which is realized on HST-02 by aluminum encapsulated sealing jaw. Besides, the upper and lower sealing design ensure a more average result. Sealing time upto to 0.1s.
For special applications, the sealing jaws can be customized in shape, dimension, surface pattern, etc.
Plastic heat sealer standard technical Data
Sealing Temp. Room Temp. ～ 300℃
Deviation ±0.2℃
Sealing Time 0.1s～9999H
Sealing Pressure 0.15 MPa ～ 0.7 MPa
Seal Jaws 330mm × 10 mm (Customization Available)
Gas Pressure 0.7 MPa
Port Size Ф6mm PU Hose
Dimensions 455mm(L) ×320mm (W) ×440mm (H)
Power AC220V 50Hz(Customization Available)

---
