US$1,000.00-3,000.00
|
1 Set
(MOQ)
|
Basic Info.
Main Material
Stainless Steel
Operating type
Continuous Operating
Transport Package
Plywood Case
Production Capacity
100 Set/Month
Product Description

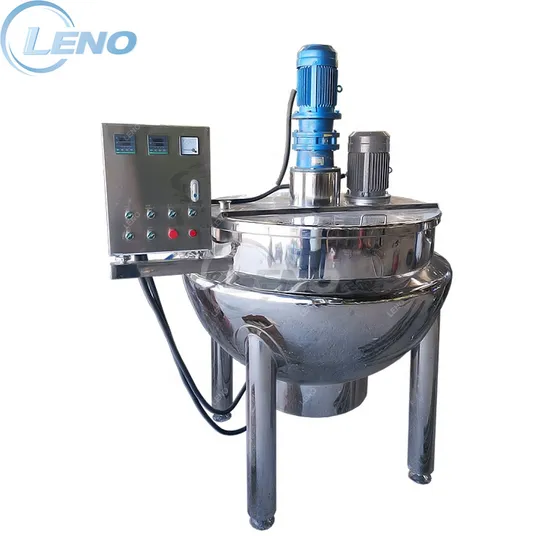

| LENO Food grade Stainless steel tilting pot cooking heating mixing industrial cooker jacket kettle |
| material | SS304 or SS316L |
| Volume | 50L-2T(Customized) |
| application | Food, pharmaceutical industry, chemical industry, etc |
| Surface | Mirror or matte, Ra<0.4μm |
| Structure | Tilting type |
| vertical type |
| Heating mode | electric heating | gas heating | steam heating |
| Agitator type | Paddle Mixer |
| Scraped Wall |
| Mixer speed | low speed |
| 0-43RPM |
| PARTS DETAILS | 1.half-cover |
| 2.Various types of CIP cleaners |
| 3.Tilting type or vertical type |
| 4.Inlet and Outlet sanitary valve. |
| 5.Electric box |
| 6.Thermometer (According to customer requirements ). |
| Technical Parameters |
| Model | Volume(L) | Agitator power(Kw) | Heating area
(m2)
| Working Pressure
in jacket (Mpa) | Agitator speed(Rpm) |
| LNK-50 | 50 | 0.75Kw | 0.2 | ≤0.2MPa
(According to customer requirements) | 23 |
| LNK-100 | 100 | 0.75Kw | 0.45 | 23 |
| LNK-150 | 150 | 1.5Kw | 0.76 | 23 |
| LNK-200 | 200 | 1.5Kw | 1.0 | 23 |
| LNK-300 | 300 | 1.5Kw | 1.15 | 23 |
| LNK-400 | 400 | 2.2Kw | 1.44 | 23 |
| LNK-500 | 500 | 3.0Kw | 1.9 | 36 |
| LNK-600 | 600 | 3.0Kw | 2.4 | 36 |
| LNK-800 | 800 | 3.0Kw | 3.2 | 36 |
| We can customize the equipment according to customer requirements. |
This equipment is mainly used for cooking food, boiling sugar, stir-frying vegetables, condiments, medicinal materials and baking, etc. It is often used in food and food processing or chemical industry.
In the course of heating, stir frying. electric heating cooking pot has the advantages of large heating area, high thermal efficiency, quick heating, short boiling time and heating temperature.
>>
