CNC Deep Hole Drilling Machine with Max. Drill Depth 1600mm

US$38,000.00-68,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

DHD-1816

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools

Movement Method

Linear Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.01~0.02(mm)

Performance Classification

Economical CNC Machine Tools

Certification

GS, CE, RoHS, ISO 9001

Condition

New

Model

DHD-1816

Item

CNC Deep Hole Drilling Machine

Workbench Size

L1800mm X W1150mm

Max. Drilling Depth

1600mm

Drill Hole Inner Diameter

Dia.2.5~38mm

Spindle Specifications

Oz25

X-Axis Displacement

1600mm

Y-Axis Displacement

1100mm

Z-Axis Displacement

1600mm

Transport Package

Standard Exporting Package

Specification

5500x4000x2800

Trademark

TEMY

Origin

China

HS Code

8459210000

Production Capacity

500 Sets/ Year

Product Description

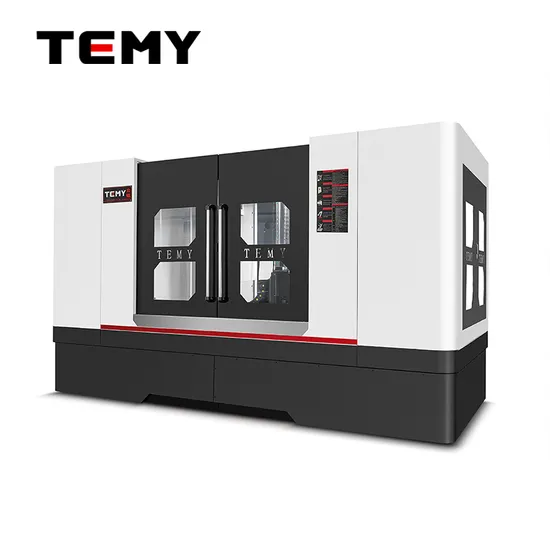

Horizontal deep hole drilling machine
Model# DHD1816
It is a horizontal deep hole drilling machine for drilling deep holes. Its structure is horizontal, and the workpiece is placed horizontally during processing. It is mainly used for drilling holes with relatively large depth and diameter ratio on various materials (such as metal materials), such as the inner hole processing of gun barrels, barrels, hydraulic cylinders, etc.
Compared with ordinary drilling machines, it can better ensure accuracy and straightness when processing deep holes, and can effectively solve the problems of chip removal and cooling lubrication, so that the processing process is smoother and more efficient.

ITEM	UNIT	DHD-1816
Machining capacity
Drill hole inner diameter	mm	Φ2.5~Φ38
Max. drilling depth	mm	1600
Machining stroke
X-axis displacement	mm	1600
Y-axis displacement	mm	1100
Z-axis displacement	mm	1600
Workbench
Size (L × W)	mm	1800*1150
Max. Loading capacity	kg	13000
Speed and Main Spindle
Spindle taper hole		OZ25
Max. spindle speed	rpm/min	6000
Feed rate	mm/min	1~300
System
Control system		SYNTEC(Standard) FANUC/Siemens/Mitsubishi/LNC/GSK(optional)
Power
Spindle motor power	KW	11 / 15
X-axis servo motor power	KW	5.9
Y-axis servo motor power	KW	5.9
Z-axis servo motor power	KW	3.1
Total power	KW	38
/Cooling System
Cooling tank capacity	L	800
Coolant pressure range	MPa	21
Coolant flow range	L/min	6~80
Chip conveyer system
Chip conveyor		Magnetic chip conveyor(Standard) / Chain or spring type(optional)
Size & Weigh
Machine weight	kg	13000
Machine size (L × W×H)	mm	5500×4000×2800
