High Quality Mobile Ship Loader

US$130,000.00-200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
mobile ship loader
Structure
Belt Conveyor
Material
Carbon Steel
Material Feature
Heat Resistant, Fire Resistant
Application
Chemical Industry, Grain Transport, Mining Transport, Power Plant, Cement Plant
Condition
New
Warranty of Core Components
2 Years
Core Components
PLC, Engine, Bearing, Gearbox, Motor, Pressure Ves
Certification
ISO9001:2008,GB,DIN,ISO,Cema,JIS
Video Outgoing-Inspection
Provided
Applicable Industries
Ores, Coal, Aggregates, Fertilizers, Grains, Woodc
Size
Standard Size or Customized Size
Machinery Test Report
Provided
Maximium Capacity
3500m3/H
Transport Package
Container or Bulk Transport
Specification
47000kg
Trademark
Zoomry
Origin
Hebei, China
HS Code
84283300

Packaging & Delivery

Package Size
1203.20cm * 235.20cm * 269.00cm
Package Gross Weight
26000.000kg

Product Description

Product Description

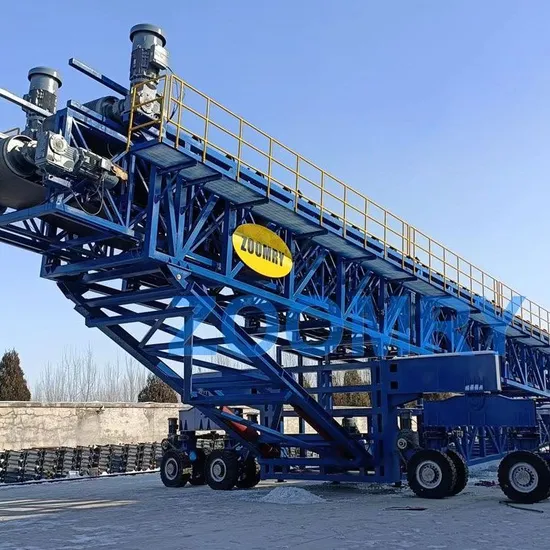

Mobile radial telescopic ship loader for sale
Zoomry Stacker Conveyors are purpose built for each application and offer unique operational features to allow luffing, slewing and telescoping action as required. From Design to produce, we offer one-station services. According to the field use needs of material yard, open-pit mine, wharf and concentrator, the equipment can realize flexible movement and stacking. By rotating the stacking material in the sector area and the stretching characteristic of the blanking point, the stacking material can reach 30,000-50,000 tons.
Specification
Product name Mobile radial telescopic ship loader
Material Carbon steel
Belt width 800mm-1600mm or per customer's reques
Max Capacity 450t/h-2400t/h or per customer's request
Certification ISO9001:2008,GB,DIN,ISO,CEMA,JIS
Application Mining, Port, Cement, Steel, Metallurgy, Electric Power, Coal, Machinery and Other Industries
Advantages Portable, rotatable, height adjustable, conveying length retractable, radial movement
Application Advantages
Type Width
(mm)
Max Capacity
(m³/h)
Speed
(m/s)
Length
(m)
Max inclined
angle(°)
Telescopic length
(m)
ZR80SF 800 450 2.5 40 20° 10-15
ZR100SF 1000 700 2.5 40 20° 10-15
ZR120SF 1200 1000 2.5 50 20° 15-20
ZR140SF 1400 1500 2.5 50 20° 15-20
ZR160SF 1600 2400 2.5 55 20° 15-20

1. Rotating the stacker fan-shaped and increase the stacker capacity;
2. The length is able to further increased the stacking capacity;
3. it can be moved as a whole, easy for users to change the place of use
4. through the expansion and contraction of the hydraulic cylinder, the stacker angle adjustable, can reduce the dust and easy tomove and maintenance at the same time
5. Non-standard design of length and transportation capacity according to users' needs;
