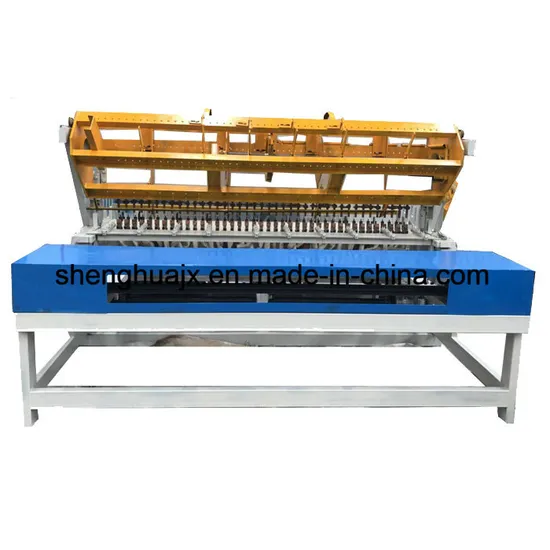

Welded Wire Mesh Fence Making Machine

Product Description

welded wire mesh fence making machine
Computer great automatic welding panel machine is the advanced welded equipment which is the combination of machinery, electricity computer. The bigger merit is that the wire diameter can change and you can get the hole distance when you insert the distance to computer control system, you can change the data, to get the distance you need, and you can welded several big hole, then small hole, you can change at your will. <o: P>
The mesh surface is smooth, the error of opposite angle line. It is evaluated the advance welding mesh, equipments by mesh-welding expert. If you need the equipments of bigger than 2.5m and 6mm, you can order goods.

1. Function			Automatic welding panel machine
2. usage			Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
			Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
3.model			SHA2500
4. Size of outside		width	3.5m
		length	2.3m
		height	2.2m
5.weight			3.5T
6.power			3.0kw
7.voltage			380v/60hz( according your need)
8	Max. Width of mesh		2.5m
	Mesh size		50*50---200*200
9. Transformer			100KVA*5
10. Diameter of welded pot			16mm
11. Diameter			2.0-6.0mm
12. Welded material			Low carbon wire,galvanized
13.Workshop need			5*15m

1. Function		Automatic welding panel machine
2. usage		Prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry
		Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
3.model		SHA2000
4. Size of outside	width	4.5m
	length	3.2m
	height	2.2m
5.weight		7.0T
6.power		7.5kw
7.voltage		380v/60hz( according your need)
8.Max. Width of mesh		3m
Mesh size		1/2"--10"
9. Diameter		1-8mm
10. Welded material		Low carbon steel wire
11.Workshop need

When the wire diameter is below 5mm, it can be roll to roller, and when the wire diameter is above 5mm, it will be in panel.

---
