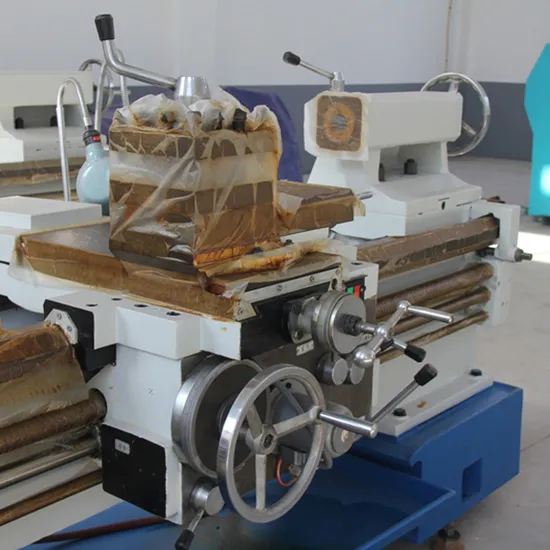

High Precision Horizontal Big Bore Pipe Threading Lathe Q1319 Oil Country Lathe Machine

US$16,000.00-18,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Q1319
Type
Horizontal Lathe
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
4 Way Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Bed Width
490mm
Swing Over Bed
630mm
Turning Length
1500mm
Spindle Bore
130mm
Spindle Speed
12-640rpm
Motor
11
Transport Package
Plywood Case
Specification
3200kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month

Product Description


HOLLOW SPINDLE OIL COUNTRY LATHES FEATURES:
This lathe meets the special requirements of users in the petroleum, geological, mining
and chemical industries, and in agricultural irrigation and drainage, it is able to cut various
straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings
and warter pump pipes more economically and efficiently as compared with the engine lathe,
however, it may serve as an engine lathe to cut various metric, with worth and module threads, shafts and disks.
1. The machine is equipped with a tapering unit which can work out a ±1:4 taper.
2. It is able to cut both metric and threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The geat power of the machine is competent at heavy load and power cutting.
6. The floor center rest can be moved freely as required by the user.
7. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
8. The double 4-jaw chucks offer free clamp of both short and long pipes.
SPECIFICATIONS:
MODEL Q1313 Q1319-1A Q1327 Q1343 Q1350
Bed width 490 490 750 750 750
Turning diameter over bed (max.) 630 630 1000 1000 1200
Max.Turning diameter over carriage 350 350 610 610 705
Max. diameter of pipe
(manual chuck)
126 193 260 426 510
Turning length (Max.) 1500 1500 1500 1500 1700
Spindle bore 130 200 270 440 520
Spindle speed steps 18 steps 12 steps 12 steps 9 steps 9 steps
Range of spindle speed 12-640 r/min 24-460 r/min 16-380 r/min 4.9-180 r/min 6-205 r/min
Inch threads (T.P.I) 28~2/40 4~12/6 24~2/17 28-2/22
Metric threads(mm) 1~14/24 2~8/4 1~12/16 1-15/23
Main motor power 11kw 18.5kw 22 kw
Machining length of taper scale 500 mm 1000 mm
Rapid travel of tool post 6000mm/min
