3 Ton 10m 8ton 20m Crawler Mini Spider Crane for Construction Use

Product Description

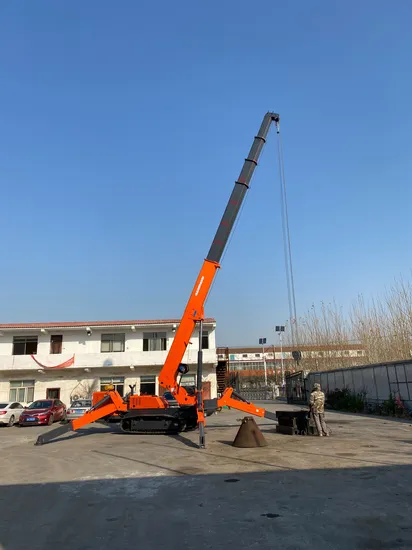

PLK LIFT Crawler Spider Crane combines the space-saving qualities of a spider crane with the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compa ct equipment offers an alternate solution to the difficulties associated with lifting in areas with re stricted access. Features & Advantages: 1. The Crawler Spider Crane for moving loads quickly, easily, and safely. 2. Spider crane, suitable for occasions with limited space. 3. The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane. 4. The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-st age telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm. 5. The telescoping limit of the boom uses the double insurance of the marking line and the alarm
Data Sheet

Model Type		CL1.2	CL2.0	CL3.0	CL5.0	CL8.0	CL12.0
Load capacity		1.2 ton	2 ton	3 ton	5 ton	8 ton	12 ton
Max ground lift		5.8m	5.98m	9.9m	16.8m	18.5m	23.5m
Max operating radius		5m×0.3t	4.7m×0.4t	8.6m×0.4t	15.3m×0.5t	16.8m×0.35t	21.3m×0.5t
Walking device	Walking mode	Hydraulic motor drive, two speed
	Walking speed	0-2.5km/h	0-2.0km/h	0-2.5km/h	0-2.5km/h	0-2.5km/h	0-3km/h
	Climbing ability	20°(36%)
Engine	Start mode	Electric start
	Startup performance	-5°C~40°C
	Engine	Gasoline	Diesel/AC	Diesel/AC	Diesel/AC	Diesel/AC	Diesel/AC
	Battery capacity	12v 45AH	12v 45AH	12v 45AH	12v 45AH	12v 45AH	24v 45AH
Vehicle Size(e( L*W*H))		2095 * 600 * 1450mm	2200 * 950 * 1650mm	2950 *980 * 1560mm	4750 *1500 * 2200mm	5000 *1600 * 2200mm	5700 *1800 * 2400mm
weight(KG)		1800kg	2000kg	2500kg	6500kg	7800kg	11500kg

Company Information
Our Service
1.We can design the customerized electric crane as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the electric crane break down to help you repair.
6.Parts of crane can be sent to you by express within 7 days if needed.

---
