| US$12,000.00-20,000.00 | 1 Piece (MOQ) |

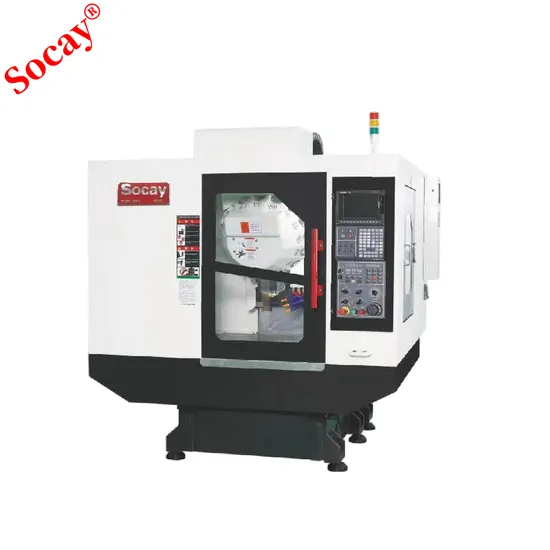

| Model | Unit | TMC-600 | TMC-700 |
| Work table size | mm | 700x420 | 800x420 |
| X-axis travel | mm | 600 | 700 |
| Y-axis travel | mm | 400 | 400 |
| Z-axis travel | mm | 350 | 350 |
| Work table T slot | | 3*14*125 | 3*14*125 |
| Worktable Loading capacity | kg | 300 | 300 |
| Distance from spindle nose to table | mm | 145-495 | 145-495 |
| Distance from spindle center to column | mm | 445 | 445 |
| Spindle taper | | BT30-BT40 | BT30-BT40 |
| Max.Spindle Speed | rpm | 20000 | 20000 |
| Magazine capacity | PCS | 21 | 21 |
| Max tool diameter | mm | 80 | 80 |
| Max tool length | mm | 250 | 250 |
| Max tool weight | kg | 3 | 3 |
| Tool change time(T-T) | sec | 1 6 | 1 3 |
| Main motor power | kw | 5.5 | 5.5 |
| X/Y/Z-axis servo motor power | kw | 1.5/1.5/3.0 | 1.5/1.5/3.0 |
| Cutting feed rate | mm/min | 5-20000 | 5-20000 |
| X,Y,Z axis rapid moving speed | m/min | 48/48/48 | 48/48/48 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 |
| Repeat positioning accuracy | mm | ±0.003/300 | ±0.003/300 |
| Ball leadscrew | mm | 32/32/32 | 32/32/32 |
| Linear guideway | mm | 30/30/35 | 30/30/35 |
| Machine Weight | kg | 3000 | 3100 |
| Power demand | KVA | 20 | 20 |
| Overall Size | mm | 2220x1900x2300 | 2220x1900x2300 |
| Adopting Japan NSK special screws angular contact ball bearing group. Arm-clipping type magazine with rapid tool change. Full closed protection guard. Inclined at a large chip removal angle, so that can quickly clean the chips and accelerate the return speed of Cutting fluid |
| 21 Arm clipping type Magazine from Taiwan | Mitsubishi M80 Controller | High Speed Spindle From Taiwan Direct Driven |
| Dongguan Socay CNC has : More than 80,000m² of the factory with more than 200 workers.(including the cnc machining factory) Strictly QC control with more than 24 steps testing processes. 30+ years CNC machine manufacture experience factory. 24 hours online service at any time. Trade with customers in 100+ countries around the word . Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect. Support ODM OEM. Warranty time is 18 months. Adhering to the "Best Machine by Socay" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation. |
| Dongguan Shuokai Machinery Co., Ltd.. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries . |
| 1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you. |
