| US$30,000.00-100,000.00 | 1 Piece (MOQ) |

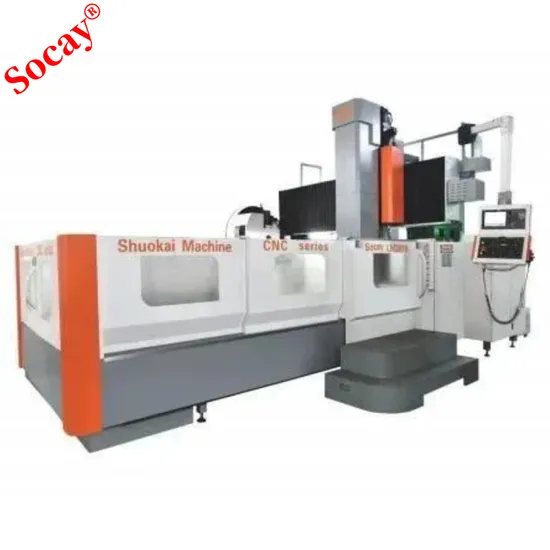

| SPECIFICATIONS | Units | GMC1312 | GMC1612 | GMC2012 |
| Table size(W*L) | mm | 1400*1050 | 1600*1050 | 2000*1050 |
| X axis travel | mm | 1350 | 1650 | 2100 |
| Y axis travel | mm | 1200 | 1200 | 1200 |
| Z axis travel | mm | 700 | 700 | 700 |
| Gantry width/passing height | mm | W:1230/H:860 | W:1230/H:860 | W:1230/H:860 |
| Table load | t | 1 | 2.5 | 4 |
| Distance between spindle nose and table surface | mm | 120-820 | 120-820 | 120-820 |
| T slot(number-width*pitch) | - | 7-22*140 | 7-22*140 | 7-22*140 |
| Spindle taper | - | BT40 | BT40 | BT40 |
| Spindle speed | r/min | 8000 | 8000 | 8000 |
| Rapid traverse speed | m/min | 24/24/24 | 24/24/24 | 24/24/24 |
| Cutting feed speed | m/min | 10 | 10 | 10 |
| Main motor power | kw | 11/15 | 11/15 | 11/15 |
| Tool magazine | | Arm24 | Arm24 | Arm24 |
| Positioning accuracy | mm | X/Y 0.0075; Z 0.015 | X/Y 0.0075; Z 0.015 | X/Y 0.0075; Z 0.015 |
| Repeat positioning accuracy | mm | 0.005 | 0.005 | 0.005 |
| Overall dimension(L*W*H) | mm | 4300*3200*3600 | 4300*3200*3600 | 4300*3200*3600 |
| Machine weight(about) | t | 8.5 | 10.5 | 13.5 |
| MACHINE CONSTRUCT High strength high quality HT300 cast iron SPINDLE TAIWAN BT50 precision spindle 6000rpm. TAIWAN TOOL MAGAZINE 1.Taiwan OKADA arm type 24 tool magazine. 2.Tool change time only 3 seconds. GUIDERAIL 2 axis linear rail and 1 axis hard rail Nitrogen balance cylinder Standard with nitrogen balance cylinder for machine counterweight PNEUMATIC COMPONENTS Standard with AirTAC Pneumatic Components AIR CONDITIONER with Industrial electrical cabinet air conditioner. Cooling the electric box better. TESTING Each machine passed Renishaw laser interferometer testing BT50 MILLING CHUCK Standard with BT40 milling chuck. CHIP CONVEYOR 2 Spiral type chip conveyor and 1 Chain type chip conveyor | CONTROL SYSTEM Standard: FANUC SPINDLE RING COOLING Standard with Spindle ring cooling function. LEAD SCREW 1.Taiwan precision lead screw. 2. Imported bearings. AIR STORAGE TANK Air storage tank to ensure the stability of spindle tool change AIR GUN AND WATER GUN High-pressure air guns and high-pressure water guns SNEIDER ELECTRICAL COMPONENTS 1. with Sneider safety electrical components 2. quick plug as standard LUBRICATION SYSTEM HERG Automatic centralized lubrication device. TESTING Each machine passed Renishaw ballbar testing LOCKING KNIFE BLOCK Standard with lock knife block. |
| Dongguan Socay CNC has : More than 80,000m² of the factory with more than 200 workers.(including the cnc machining factory) Strictly QC control with more than 24 steps testing processes. 30+ years CNC machine manufacture experience factory. 24 hours online service at any time. Trade with customers in 100+ countries around the word . Cooperate with the Famous Brand , such as SIEMENS, FANUC , SYNTEC ect. Support ODM OEM. Warranty time is 18 months. Adhering to the "Best Machine by Socay" purposes, We provides better quality machines more efficient and thoughtful after -sales services to customers. Sincerely hope to communicate with friends from various countries, and get win-win cooperation. |
| Dongguan Shuokai Machinery Co., Ltd.. Has got many international certifications such as lSO, WIPO, CE, BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, covering North America, Europe, Europe, South America, Middle East, and South east Asia, And we provide long-term overseas technical guidance and after-sales service for these countries. |
| 1: What's your main products of your company? A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center , Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 2:What kind of controlsdo you use on machines? A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements . 3. What is your trade terms? A : FOB, CFR and CIF all acceptable. 4 : How can I choose the most suitable machines ? A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality. You can also send us product pictures and we will choose the most suitable machine for you. 5 : Do we receive any updates while machine is in the manufacturing process? A : Of course. The progress of the machine will be updated regularly and sent to you. |
