high pressure gas cylinders, gas cylinder system, gas cylinder storage

Product Details

Product Description

Product Description
Main specs on 40L Gas Cylinders:
-1). Water capacity: 40 Liter; Mat.: 37Mn;
OD= 219 mm; W. P/T. P.: 15/25Mpa; Wall thickness: 5.7 mm; G. W.: ~47kg;
Height: 1, 345 mm (W/O cylinder cap); Gas(O2): 6M3.
-2). Color: As GREEN preferred;
-3). Connecting thread:
-4). Applied standard: ISO 9809-3;
-5). Packing: Each with nylon bag or as preferred(based on bilateral agreement).
What we can promise for you:
*High quality and security gas cylinders;
*Competitive unit price in the market;
*Fast delivery (3~4 weeks);
*Best after-sale service.

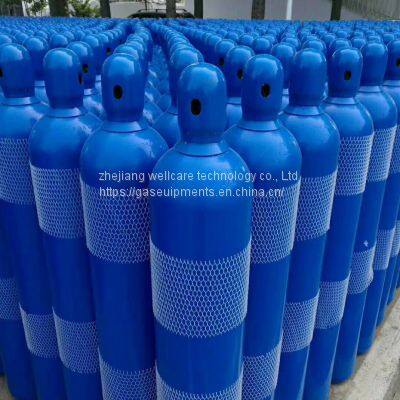

Our manufactured Seamless Steel Gas Cylinders are made from moblie high-pressure vessels. They are manufactured with the most advanced technology, machinery and equipment in the word. They are ideal for holding permanent gases, such as oxygen, hydrogen, argon and carbon dioxide,and etc.

Outside diameter (mm)	Capacity(L)	Height (mm)	Weight (kg)	Material	Wall Thickness (mm)	test pressure (MPa)	Working Pressure (MPa)
108	2.0	320	3.75	37Mn	5.7	22.5	15
108	2.0	317	3.72	37Mn	5.7	22.5	15
121	4.0	485	6.16	37Mn	5.7	22.5	15
121	4.0	470	5.95	37Mn	5.7	22.5	15
140	4.0	492	5.7	37Mn	5.7	22.5	15
140	5.0	578	7.52	37Mn	5.7	22.5	15
140	7.0	713	9.84	37Mn	5.7	22.5	15
152	7.0	648	9.57	37Mn	5.7	22.5	15
140	10.0	935	13.90	37Mn	5.7	22.5	15
152	10.0	846	12.6	37Mn	5.7	22.5	15
159	10.0	805	14.15	37Mn	5.7	22.5	15
159	12.0	950	16.34	37Mn	5.7	22.5	15
159	15.0	955	19	37Mn	5.7	22.5	15
219	25.0	885	33	37Mn	5.7	22.5	15
219	32.0	1090	40	37Mn	5.7	22.5	15
219	40.0	1310	48.0	37Mn	5.7	22.5	15
232	40.0	1170	45.3	37Mn	5.7	22.5	15
232	46.7	1345	51	37Mn	5.7	22.5	15
219	47.0	1355	52	37Mn	5.7	22.5	15
219	50.0	1600	57.0	37Mn	5.7	22.5	15
232	50.0	1440	56.0	34CrMo4	5.7	30	20

Outside diameter (mm)	Capacity(L)	Height (mm)	Weight (kg)	Material	Wall Thickness (mm)	Test Pressure (MPa)	Working Pressure (MPa)
108	2.0	320	3.75	37Mn	5.7	22.5	15
108	2.0	317	3.72	37Mn	5.7	22.5	15
121	4.0	485	6.16	37Mn	5.7	22.5	15
121	4.0	470	5.95	37Mn	5.7	22.5	15
140	4.0	492	5.7	37Mn	5.7	22.5	15
140	5.0	578	7.52	37Mn	5.7	22.5	15
140	7.0	713	9.84	37Mn	5.7	22.5	15
152	7.0	648	9.57	37Mn	5.7	22.5	15
140	10.0	935	13.90	37Mn	5.7	22.5	15
152	10.0	846	12.6	37Mn	5.7	22.5	15
159	10.0	805	14.15	37Mn	5.7	22.5	15
159	12.0	950	16.34	37Mn	5.7	22.5	15
159	15.0	955	19	37Mn	5.7	22.5	15
219	25.0	885	33	37Mn	5.7	22.5	15
219	32.0	1090	40	37Mn	5.7	22.5	15
219	40.0	1310	48.0	37Mn	5.7	22.5	15
232	40.0	1170	45.3	37Mn	5.7	22.5	15
232	46.7	1345	51	37Mn	5.7	22.5	15
219	47.0	1355	52	37Mn	5.7	22.5	15
219	50.0	1600	57.0	37Mn	5.7	22.5	15
232	50.0	1440	56.0	34CrMo4	5.7	30	20

---
