Zinc Material Fire Sprinkler

Product Description

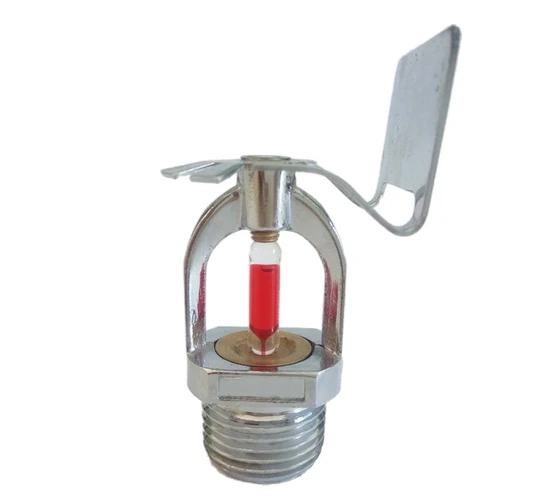

1/2" 68 degree K5.6 quick response upright fire sprinkler heads
1. Brief introduction:
Glass bulb fire sprinklers, which is the key part of automatic sprinkler system, can be used to not just detect fire risk but control the fire and extinguish it by automatically spraying water. Since it can meet the requirements of protection from fire risks at degrees, glass bulb sprinklers are generally used in high buildings, hotels, department stores, and warehouses, etc.
The environment temperature of working is from 4 ºC to 70 ºC.
2. Composition and structure:
Made of brass frame, splash, deflector, glass ball, seals, tight set screws.
3. Operating principle:
Spray Sprinklers serve a variety of applications but all operate individually when heat at the sprinkler is high enough to "automatically" operate a calibrated thermal link that opens the sprinkler allowing the pressurized water to spray onto the source of heat. If the first sprinkler cannot control the fire the heat will build and spread to adjacent sprinklers that will operate as needed. Although special situation/applications use sprinkler heads or nozzles that are already open such that water discharges through all the sprinklers at once, the normal "Wet" Pipe system limits the water flow to the area of high heat.
4. Technical parameters:
Sprinklers vary considerably in their water flow characteristic since they are each designed for certain applications, however their basic shapes are limited to Uprights, abbreviated SSU (vertical above pipe, spraying down), Pendants, abbreviated SSP (vertical, below pipe spraying down) and Sidewalls, Horizontal (abbreviated HSW) and Vertical (VSW), both spraying horizontally.

Technical parameters
Type	Nominal diameter(mm)	Connecting thread	Flow coefficient
T-ZSTP Conventional sprinkler	DN15	R1/2	80±4
	DN20	R3/4	115±6
T-ZSTX Pendent sprinkler	DN15	R1/2	80±4
	DN20	R3/4	115±6
T-ZSTZ Upright sprinkler	DN15	R1/2	80±4
	DN20	R3/4	115±6
T-ZSTBS Sidewall sprinkler	DN15	R1/2	80±4
	DN20	R3/4	115±6
ZSTDY Concealed sprinkler	DN15	R1/2	80±4
	DN20	R3/4	115±6

5. Types of fire sprinklers:
6. Package:
Company Profile _______________________________________________
Guangwei Fire Fighting Scie Tech Co. Ltd was established in 2008 and is one of the largest fire sprinkler manufacturers in China.Our company has 20 engineers, 30 technicians and 500 other employees and occupies a building area of 30,000 square meters.
Annual turnover of more than USD25,000,000. With our staff's efforts, our annual turnover is now more than USD25,000,000. Our products are all manufactured according to the GB50084-2017 and UL LLC standards. At present, our company mainly manufactures in fire sprinklers, fire alarm valves, sprinkler machines and other fire equipment.
OEM service
Furthermore, we can also offer OEM service. Supplying customers with quality products at reasonable prices, we win their trust and support, and establish long-term business relationships with them. Our managing policy is "careful manufacturing, standardized management, offering high-quality products and satisfied service to customers". All of our products are inspected and we received qualification certificates from the State Quality Supervising & Inspection Center for Fire Products. Our products are very popular in many countries and regions around the world such as the US, Brazil, Turkey, Hong Kong, Saudi Arabia, Singapore and India. FAQ
_________________________________________________ Q1: Are you manufacturer or trading company? A:We have own 4 factories, fire sprinkler is our advantage.
Q2: What certificate do you have?
A: UL, FM, CE,CCCF, ISO9001etc. Q3.: Can you customize the products as per our request?
A.: Yes, we do OEM and ODM.We can customize all kinds of sprinkler.
Q4: Can you send me a sample? Is it free?
A: Yes, the sample is free. But the courier charge should be on your side. Q5: What is the lead time? A:Sample needs 1-3 days, mass product according to your quantity.
Q6: Do you guarantee for the products?
A:Yes,we offer one year guarantee for the products.

---
