Straight Refrigerator PU Foaming Line

Product Description

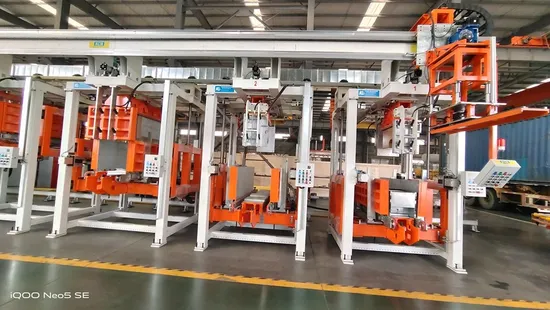

The line introduces linear confirguation with non-freon design and the hardening position as nine-position. The line is composed with Nine units of cabinet-foaming fixture(actually the station numbers are determined by customer's productivity, one or multiple are avaible.), a set of injecting manipulator, a set of both-way carrying car for loading & unloading cabinet, a set of water-heating system, a set of safety exhausting system, a set of safety system, a set of safety fencing together with electronic controlled system for the line. (Note: The safety fencing is built by buyer with the drawing and technical requirement giving by seller, all the equipments doesn't include molds) The line comprises several processes including loading, transporting, clumping, injecting, hardening, cabinet-unloading with characteristics of beautiful appearance, high production efficiency, low labour intensity and etc. The main technical performance parameters 1. L*B*H: Specification of the cabinet 800*800*1800(MAX size of refrigerator)
2. Working position: 9 3. Foaming agent: POL+ISO type 4. Harden time: Adjustable 5. Mold temperature: 30--60degree temperature adjustable 6. Injecting pattern: Side of single-gun(opposite of the cabinet loading)horizontal injection 7. Index of production: 60S(based on 5 min of the harden time) 8. Power supply: 380V, 50Hz, voltage: 24V of Control component outside the cabinet 10. Power capacity: 120KW(for reference)
