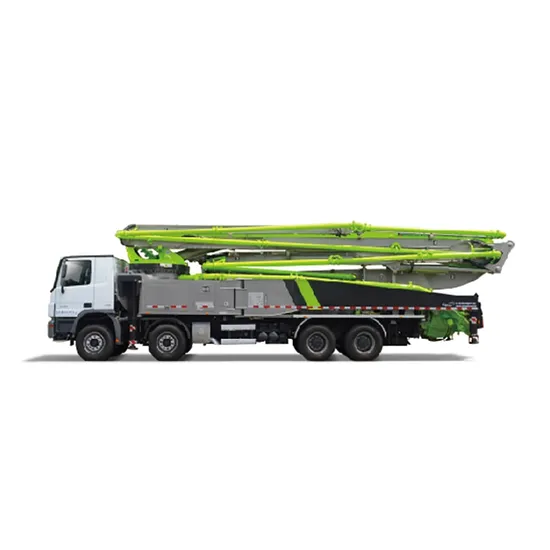

| Model | SYM5445THBEs | ||
| Pumping system | Max. Theor. output | m3/h | 180 |
| Max. Theor. concrete output Pressure | MPa | 13 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | v27/17 | |
| Hopper capacity | L | 650 | |
| Filling height | | 1540 | |
| Hydraulic system type | | Open loop | |
| Distribution valve | | S valve | |
| Oil cylinder dia.×stroke | mm | Φ230×2100 | |
| Concrete cylinder dia.×stroke | mm | Φ230×2100 | |
| Hydraulic oil cooling | | Air cooling | |
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 40 | |
| Placing boom | Structure type | | 62-6RZ |
| Placing depth | m | 55.9 | |
| Horizontal distance | m | 62 | |
| Placing depth | m | 56 | |
| Slewing angle | | ±270° | |
| Boom number | | 5 | |
| The length of boom section | mm | 8890/8100/8105/5405/3500 | |
| Sections folding angle | | 90°/180°/180°/250°/90° | |
| Pipe diameter | mm | 125 | |
| End hose length | mm | 3000 | |
| Min. height of opening placing boom | mm | 9610 | |
| Outriggers span (front×rear×side) | mm | 8190×8345×7045 | |
