Stainless Steel Food Level Cooking Jacketed Kettle with Steam Heating Tilting Type

Product Description

Stainless Steel Food Level Cooking kettle Machine with steam heating tilting type
1. Cooking kettle made of stainless steel
2. Jacketed pot with customized cooking capacity
3. Steam heating
4. Automatic control temperature and gas
Jacketed kettle / jacketed pot / cooking kettle
Jacketed kettle is a kind of cooking and mixing device used in dairy proess and beverage production.
You can produce tomato paste, puree, milk, and many other products by jacketed cooking kettle.
Also, you can make soup by our cooking kettles or cooking pan.

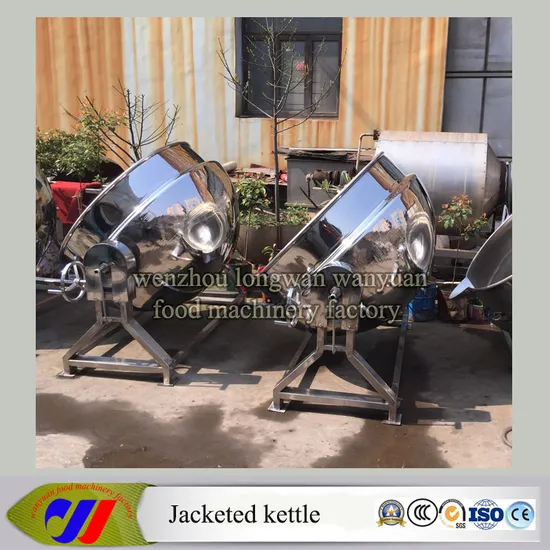

Gas heating jacketed kettle picture:
Steam heating jacketed kettle capacity:
As a manufacture of steam jacketed kettle<cooking pot or jacketed cooking vat>, wenzhou longwan wanyuan food machinery offer different cooking kettle capacity according to your request.
You can choose 50L cooking kettle, 100L cooking kettle, or 200L cooking pot. You can also choose any other customized capacity cooking kettle.
Cooking kettle capacity can be 50Liter to 600Liters.
If you need big capacity steam cooking kettle, such as 1500L double layer cooking kettle, we can also offer.
Dear sir or madam,
In order to make sure the accurate specific of the machine you prefer, please provide the information below when make a inquiry.
1. The capacity you need?
2. The product to be cooked?
3. Electric heating or steam heating or gas heating?
4. With mixer or without mixer?
5.220V or 380V or others?
6. Insulating layer needed?
Abour your request details, please kindly let me know, so that I can choose the right machine for you!
Wenzhou wanyuan food machinery factory-Jacketed kettle
Here below is our steam heating jacketed kettle specification:

Model	GTJ-100	GTJ-200	GTJ-300	GTJ-500	GTJ-600
Volume (L)	100	200	300	500	600
Pot Size (mm)	Φ700×530	Φ800×580	Φ900×630	Φ1100×730	Φ1200×780
Working Pressure(MPa)	≤0.3(jacket)
Working Temperature	≤100 degree C (material in pot) ≤143 degree C(jacket)
Blending Speed (r/min)	35
Steam Inlet(DN)	20	20	20	25	25
Heating Area(m2)	0.7	0.95	1.2	1.8	2.2
Evaporative Power(kg/h)	45	80	100	140	160
Steam Consumption (kg/h)	50	90	112	160	182
Motor Power (KW)	0.37	0.55	0.55	1.1	1.1
Dimension(cm)	115×80×100	135×90×107	145×100×115	165×120×136	176×130×146
Weight(kg)	180	200	220	290	320

---
