Online Biogas Analysis System Gasboard-3500

Product Details

Product Description

Product Description
Introduction

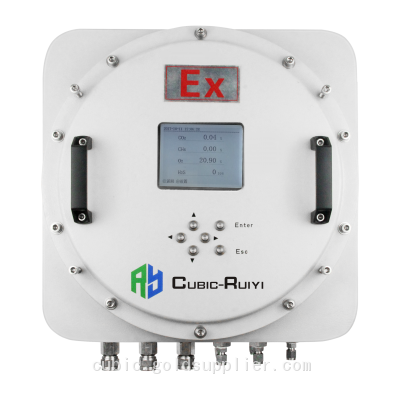

Online Infrared Gas Analysis System Gasboard-3500 is an online monitoring system with wall-mounted ex-proof enclosure, mainly used for continuous measurement for different combustible fuel gases, such as biogas, syngas, natural gas and so on. Composed by various sensors, Gasboard-3500 has a very flexible configuration and can measure CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value, Wobbe index, etc. It is widely used in different industrial hazardous area, such as biogas plant, landfill plant, biomethane, natural gas city gate, LNG transportation and so on. Besides combustible gas quality check, it can also be used for calorific value adjustment of natural gas or LNG vaporized gas, H2 & NG gas blending, optimization of air-fuel ratio for turbines and furnaces and other applications. Modular sensor design enables the feature of easy maintenance. With flexible gas conditioning system, it can implement sampling, drainage and other operations automatically and achieve 24 hours unattended monitoring.
Features
High-speed response and continuous measurement based on NDIR and other technologies
Real time calculation of calorific value and wobbe index
No carrier gas needed, replacement to gas chromatography, mass spectrometry
Modular sensor design ensures simple maintenance
EX-Proof design with CNEX certification (ExdⅡCT6 Gb)
Optional air purging module can prolong electrochemical sensor lifetime
Thermostatic design for sensors to reduce temperature fluctuation influence
All parts contacting with sample gas are made of high corrosion resistant material
Auto diagnosis function to check sensor status quickly
Capable of measuring multiple sampling channels
Specifications

Gas	CH4, CnHm, CO, CO2, H2, O2, H2S, Calorific value**4 sensors for maximum
Technology	NDIR, TCD, ECD
Measure Range	CO/CO2/CH4/CnHm: (0~100)% O2: (0~25)% H2S: (0~9999)ppm *Measurement range can be customized
Resolution	CH4, CnHm, CO, CO2, H2, O2: 0.01%; H2S: 1ppm
Accuracy	CH4, CnHm, CO, CO2: ± 2% FS; H2, O2, H2S: ± 3% FS
Repeatability	±1%
Response Time(T90)		Warm-up	800s
Output	RS232 & 4-20mA

For more details, please feel free to contact our sales: sales@gasanalyzer.com.cn.

---
