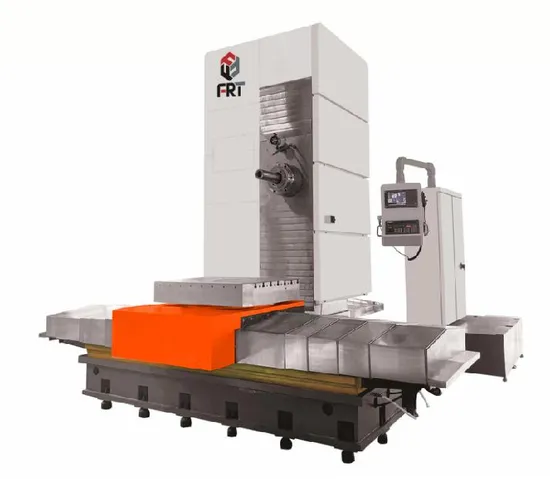

Frt Hbm-T130b Heavy Duty CNC Horizontal Boring and Milling Machine

Product Description

Product Description

Main Structure
The series machine tool is a column moving structure, mainly composed of worktable, bed, slide seat, column, ram, hydraulic system, lubrication system,pneumatic system, cooling and filtering system, chip removal device, fixed operation panel, and electronic control system.

Product Parameters

Item		Main Parameter
CNC operating system		FANUC
Work table size	mm	1800×1600
Left and right stroke (X)	mm	3000
front and back strock(Z)	mm	1000
Up and down stroke (Y)	mm	1600
Rotation accuracy	°	0.001°
Extension Stroke(W)	mm	700
Maximum processing size	mm	2500×2500
Workbench T-slot(Number/size/spacing)	mm	10-8*150
Spindle diameter	mm	130
The spindle taper		BT50
Spindle speed (rpm)	rpm	3000
X ,Yaxis ball screw specifications	mm	63*16
Z-axis ball screw specifications	mm	63*10
Machine tool positioning accuracy (GB / T 20957.4-2007 standard)	mm	0.01
Repeated positioning accuracy of machine tools (GB / T 20957.4-2007 standard)	mm	0.01
X/Y/Z axis rapid shift	m/min	10/10/10
Maximum cutting feed rate	m/min	8
Spindle transmission mode		Direct drive
X/Y/Z/ axis servo motor transmission mode and transmission ratio		X-axis reducer directly connected 1:1; Z directly connected transmission Z axis 1:1
X axis guide specifications		Two 55-roller heavy-duty rails
Y axis guide specifications		Rectangular hard ram
Z axis guide specifications		Two 55-roller heavy-duty rails
Spindle power	KW	30
Recommended selection of servo motor parameters(X/NM,Y/NM,Z/NM)	N·M	35/35/38
Air source flow		>0.5
Power supply requirements		380V
Bed cushion height	mm	30
· Work table loading	T	5T
Machine dimensions	mm	7000×6000×5000
Light machine net weight	T	Approx 38T

Company Profile
1.professional r&d team with 20 years of experience provide the over all solution for machine and processing.
2.Exporting to more than 50 countries worldwide
3.We own ISO certificate and SGS certification to prove our quality.
Henan Front Intelligent Equipment Co., LTD .
Henan FRT Group (Henan Front Intelligent Equipment Co.,Ltd.),its subsidiaries Luoyang Yujie Industry and Trade Co.,Ltd.,and Luoyang E-find Precision Bearing Manufacturing Co.,Ltd.,benefit from Luoyang's heavy-duty manufacturing advantages.Henan FRT Group has eighteen years experience of exploration and active innovation,has developed into a leading science and technology enterprise integrating scientific research and development, production and manufacturing, sales, technical services, and import and export trade.
FRT Group has been in the machinery industry for eighteen years and is committed to the three major fields of mechanical equipment, mechanical parts and precision bearings. The group has a group of experienced mechanical design teams, production and processing teams, assembly teams, and sales teams, and has excellent production equipments and processing technology, excellent testing instruments, complete product quality assurance system and after-sales service, consistently put product quality and users value first, adhere to integrity and long-termism, the group's core values allow customers achieving success is rooted in the hearts of company personnel.
Our Customers


FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
