US$1,200.00-1,499.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Double Cylinder Hydraulic Lift
Driving Motor Number of Mechanical Lift
1
Hoist Lift
Two Post Car Hoist Lift
Motor Power
2.2kw-380V or 2.2kw-220V
Transport Package
Standard Export Package
Specification
2820 mm*3320 mm*
Production Capacity
100/Month
Packaging & Delivery
Package Size
287.00cm * 45.00cm * 69.00cm
Package Gross Weight
600.000kg
Product Description
Product Description
Specification
| Product name | V-LZW-B-2140 |
| Lifting Capacity | 4000kg |
| Lifting Height | 1850mm |
| Min. Height | 120mm |
| Pass width | 2500mm |
| Column width | 2790mm |
| Total width | 3320mm |
| Lifting Time | 50s-60s |
| Motor Power | 2.2kw-380v or 2.2kw-220v |
| Oil Pressure Rating | 24MPa |
| Weight | 590kg |
Feature

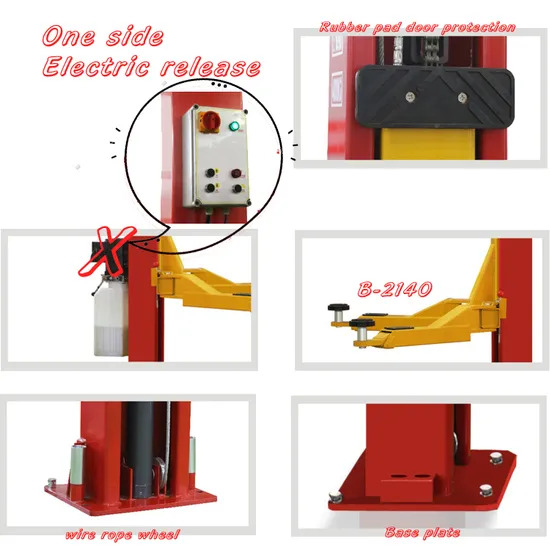

Floor design, suitable for the bottom not high in the auto repair. Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system Electric release. Rubber pad door-opening protection. Secure fence protect the toes. Rubber support pad adopts double helix adjustment height and height increase joint. Limit switch. The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation. Packaging & Shipping
FAQ
1 Q : Are you Manufacture or trading company?
A : We are professional and have factory with our own export department. All clients are welcomed to visit us.
2 Q : How about the quality of your products ?and why choose Vico?
A : With advanced manufacturing machines ,Choose top raw materials from the finest plants; Low prier with high quality revenue producing products; The best customer service. Quick reply within 12 hours;18 months or 3 Year's Warranty!
3 Q : What's the Minimum Quantity Order?
A : We accept one piece/set each time
4 Q : Can we customize our products?
A : Yes ,you can .Customized material ,size ,lift capacity ,color are acceptable. We can provide different standards to your market and favor.
5 Q : How do i make the order and pay?
A : You can choose ****** trade assurance online deal or by TT bank transfer according to the Proforma invoice (PI)/Contract. Deposit 30% or 50% for production, balance paid before delivery.
6 Q : After payment how long will you arrange the delivery ? If o don't have ship agent, can you arrange the shipment?
A : Delivery usually will be arranged in 10~20 days after your payment ,sales will confirm with you before setting the deal. We can offer FOB to China sea port, CNF to customer's country sea port, also can arrange the DDU or DDP to door address shipment service.
