Ck6150-1000 Flat Bed CNC Lathe Machine Tools Metal Cutting Milling Drilling Machine

Product Description

Product Description
This exceptional series of machines combines a sleek, compact design with an attractive appearance. It boasts a robust spindle capable of generating substantial torque, ensuring outstanding rigidity for stability and reliability. With time-tested precision, this machine maintains exceptional accuracy over prolonged periods. It offers high positional precision and excels in seamless chip evacuation, making it perfect for high-speed, high-precision machining tasks. The machine effortlessly processes inner and outer cylindrical surfaces, cone surfaces, circular arc surfaces, and end faces. Furthermore, it handles single and multiple threads in metric, inch, and other standards with remarkable efficiency and delivers unmatched performance.

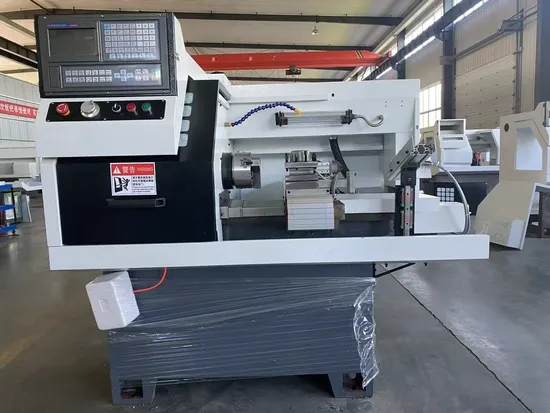

Detailed Photos
Product Parameters

SPECIFICATIONS	UNIT	CK6140
Max swingoverbed	mm	∅400
Max swingover cross slide	mm	∅180
Max processing length	mm	750/1000/1500
X/Zaxi;tra-1	mm	x:240 z:750/1000/1500
Spindle speed	rpm	L:70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	∅52
Spindle taper		MT6
Spindle motor	kw	5.5
Chuck size	mm	∅200
Ball screw dia and pitch		2505/4006
X/Zaxis feed motor torque	N.m	5/7.5
X/Zaxis rapid traverse	m/min	X:6 Z:8
X/Zaxis repeatabilty	mm	±0.005
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock sleeve dia	mm	∅65
Quill traverse	mm	140
Quill taper		MT4
System		GSK
Tool postform		Electric six station
Voltage	v	3 PHASE 380V 50HZ
Machine dimension (L*W*H)	mm	2300*1500*1700
Gross weight	kg	1900

Product description:
1. The sheet metal design beautifully balances aesthetics with user-friendly operation, providing an exceptional user experience.
2. The bed frame is crafted from high-quality resin sand and features aging rail super audio quenching, ensuring superior wear resistance.
3. An advanced rail laminating process further enhances wear resistance, contributing to an extended equipment lifespan.
4. This machine features a high-precision rolling screw vice transmission with three-point positioning double support, ensuring outstanding accuracy.
5. A centralized lubrication unit guarantees comprehensive lubrication of all moving parts, significantly prolonging the equipment's lifespan.
6. Offers multiple clamping options to suit a diverse range of operational needs.
Fit Range
1. Capable of turning cylindrical, taper, arc, externality, cut-through, boring, reaming, and expertly creating various screw threads.
2. Perfectly suited for automotive and mobile parts, valves, electric tools, hardware meters, and more, ensuring high standards of surface roughness.
Packaging & Shipping

Company Profile
Liaocheng Wayne New Materials Co., Ltd. proudly leads in the realm of CNC Router and Laser Engraving & Cutting technology. Located in the dynamic and innovative heart of Liaocheng city, Shandong, our extensive product portfolio showcases an impressive array of machinery. This includes Large-scale ATC Woodworking Router Machines, advanced 5-axis CNC Router Machines, reliable CNC Advertising Router Machines, precise CNC Marble Engraving Machines, efficient CNC Plasma Cutting Machines, cutting-edge CNC Metal Mold Machines, versatile CNC Lathe Machines, high-precision Swiss Type Lathe Machines, powerful Fiber Laser Cutting Machines, versatile CO2 Laser Cutting & Engraving Machines, state-of-the-art Laser Marking Machines, and highly effective Laser Welding Machines, among others. By leveraging cutting-edge technology and maintaining unwavering quality standards, we are dedicated to building the global brand 'Wayne.' Our products, epitomes of superior craftsmanship, have ventured into over 100 countries, including prominent markets like the United States, Germany, Indonesia, Canada, Australia, Russia, and extensively across Southeast Asia. This remarkable global footprint underscores our status as a true international leader in our field.Our core mission is to provide unparalleled service excellence to our valued customers. Whether you require ready-to-use solutions or customized configurations, we excel in delivering precise and tailored solutions for your unique requirements. Each component of our state-of-the-art machines is meticulously sourced from world-renowned suppliers and pioneers in machine control, ensuring exceptional performance and unmatched reliability. Our machines integrate seamlessly into diverse industries and artistic endeavors, including woodwork, intricate metal and stonework, aluminum fabrication, boat building, shop fitting, and precision mold making. Supported by a dedicated and highly skilled after-sales service department, an adept sales team, and stringent quality assurance protocols, you can purchase from us with absolute confidence. We extend a warm invitation to customers and potential business partners worldwide to join us in cooperative ventures, paving the way for mutual success. By offering the best service, impeccable quality, and competitive prices, Wayne stands as your ultimate choice. We eagerly anticipate collaborating with you to generate greater value. Reach out to us with your requirements, and let's engage in a productive conversation. We await your contact with eager anticipation, ready to embark on a promising journey together.
FAQ

Q: Are you trading company or manufacturer ?
A: We are factory. Wayne machinery is a manufacture of cnc lathe cutting machine and laser cutting machine ,In fact,we do export for more than 15 years , our goods are very polupare to all over the world.We believe that a brighter further is waiting for us.
Q: How long is your delivery time?
A: Generally it is 15-30 days ,it is according to different machine model and different configuration and order quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Also we would like to do LC at sight.
Q: Where is your factory located ? How can I visit there ?
A: We are located in Liaocheng City. Which is only 1 hours' away from Jinan by train.
Also you can fly to JINAN Airport, it is only 1 hour and we will pick up you.

---
