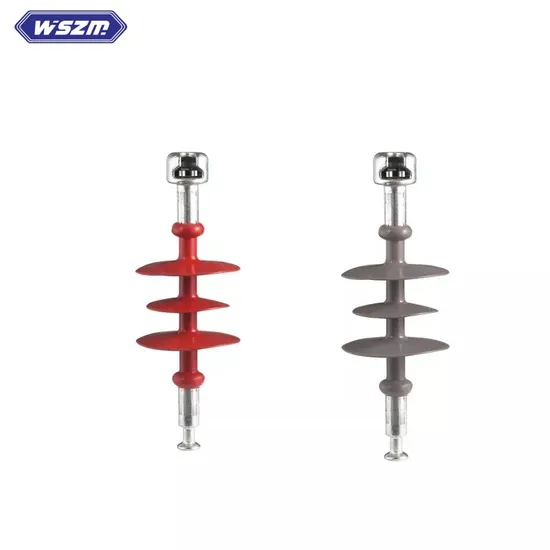

Premium High Voltage Electrical Insulator for T-C Suspension Applications

Product Description

Product Description Model Number: FXBU4 (T-C Series) /FXBD4 (T-T Series)/FXBYW4 (Q-Y Series) /FXBW4 (S-B Series)
Type: Composite Insulator
Material: Composite Polymer
Application: High Voltage
Rated Voltage: 10kV- 330kV
Tensile Strength: 40kN-160kN
Supply Ability
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package; customized packaging are accepted
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 20-25 To be negotiated Detailed Photos

Type	Rated Voltage (KV)	Rated Failing Load (KN)	Section length (mm)	Dry Arcing Distance(mm)	Miniwm Creepage Distance (mm)
FXBU4-24/70	24	70	460±15	260	700
FXBU4-24/100	24	100	500±15	260	700

Type	Rated Voltage (KV)	Rated Failing Load (KN)	Section length (mm)	Dry Arcing Distance(mm)	Miniwm Creepage Distance (mm)
FXBD4-35/70	35	70	650±15	450	1015
FXBD4-35/100	35	680100	430±15	450	1015

Type	Rated Voltage (KV)	Rated Failing Load (KN)	Section length (mm)	Dry Arcing Distance(mm)	Minim Creepage Distance (mm)
FXBYW4-110/160	110	160	1240±15	1000	3150

Type	Rated Voltage (KV)	Rated Failing Load (KN)	Section length (mm)	Dry Arcing Distance(mm)	Minim Creepage Distance (mm)
FXBW4-330/100	330	100	3080±40	2600	9075
FXBW4-330/160	330	160	3150±40	2600	9075

Type:	Composite Insulator
Application:	High Voltage
Rated Voltage:	10kV- 330kV
Tensile Strength:	40kN-160kN

Silicon Rubber InsulatorWith Advanced producing equipments and methods, inspection means as well, our composite insulators reach up to the domestic and international standard, becoming the important and necessary insulator products in the high-voltage distribution line.
1. End Fitting:The fitting connection adopts the zinc cover protection, supersonic monitor and coaxial constant compression controlled by computer, finished with good appearance and high quality
2. The Silicon rubber rain shedThe silicon rubber rain shed, designed according to the aerodynamics principle, use the whole-molding method, to make sure the validity of total creep-age distance under every climate and nasty conditions, as well as improve the pollution discharge of the insulators.
3. The average thickness of protective cover≥ 5 mm. comply whith IEC standard
4. Fiber rodUse the ECR high-temperature and acid-proof fiber rod.
5. The end fittingThe end fitting uses maze type waterproof design, and out-cover rubber process, which enhanced the product waterproof greatly.
Silicon rubber with fine formulas have good waterproof and leakage withstand ability.
The fittings made by special steel, together with advanced compression technique, ensuring the stability and accurate of insulators Company Profile
Our company Simeng Electric Power Technology(Hangzhou) Co.,LTD works with many large professional manufacturers of electrical products in China, most of these manufacturers have more than 20 years of inline experience, we offer a large variety of electrical products including varied electric power fittings, cable accessories, sillicon rubber insulator, lightning arrestor, fuse cut-out, Circuit Breaker, Transformer, DS, transparent meter cabinet,Cable Waterproof Connector Solar Mount Connector,Solar Connector etc. Based on our strategy we are to provide the fine quality electrical products in many different options by defined sourcing, we also perform strict quality inspections throughout our entire manufacturing process. we strive for our customers of excellent value-added service, innovative electrical solutions and competitive price. our products have gained a strong reputation throughout the Middle East, South America, Southeast Asia, Africa, etc. Packaging & Shipping
Our Advantages
WHY CHOOSE SIMENG?
1)We work with many different large electric manufacturers with long-term relationship, our goal is fine quality / reasonable price / comfortable service for our clients.
2)We provide accurate and timely sourcing service.
3) Strong R&D team support us to meet customer's need
4)Experienced sales team supply customized services for every single customer with effective communication.
5)High-efficient productive ability meets the need of the worldwide customers.
6)Professional QC team has the strict quality control from purchasing materials to bulk inspecting , during the whole manufacturing process.
FAQ FAQ:
1.Could we have price of the products?
- Sure, please send us email for more information
2.Can we print our logo / brand name on products?
- Yes, we provide OEM products with Certain order quantity requirements.
3.What's the lead time for regular order?
- 10-15days for regular products with order quantity lower than 5000pcs.
4.Can we ask for sourcing service which is not your product ?
- Yes, There are a wide range of our products have not been released here yet. Welcome to send your product pictures or data sheet for our sourcing, and we will provide you with quotation effectively.
5.Do you inspect the finished products?
- Yes, we do in-line inspection during the production, finishing inspection before shipping by QC department.
6.How do you pack the goods?
- Standard export package, customized packaging are also accepted, to be discussed.

---
