Stable Quality Injection Molding Machine Plastic Machinery for Plastic Water Bottle

Product Description

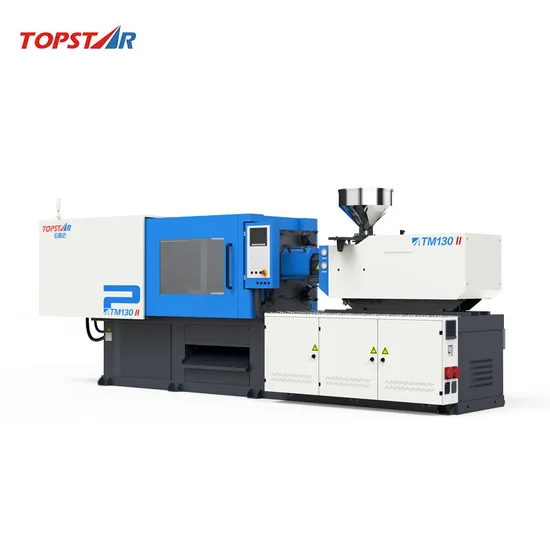

Stable Quality Injection Molding Machine Plastic Machinery for Plastic Water Bottle

Product Description:
The TM series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TM130
Screw Diamete	mm	36	40	45
Screw L/D Ratio	L/D	22.5	20.0	17.8
Screw Stroke	mm	170	170	170
Shot Volume	cm3	173	214	270
Shot Weight(ps)	g	157	194	246
	oz	5.5	6.8	8.7
Injection Pressure	kgf/cm3	2301	1864	1473
Injection Rate	cm3/s	101	125	158
Injection Rate	mm/s	99	99	99
Screw Speed	rpm	220
Nozzle Contact Force	t	4.2
Nozzle Stroke	mm	260
CLAMPING UNIT	UNITS	TM130
Clamping Force	t	130
Opening Stroke	mm	360
Platen size(H×V)	mm	600*600
Space Between Tie Bars(H×V)	mm	560*360
Mlould Thickness (Min)	mm	150
Mlould Thickness (Max)	mm	460
Max. Daylight	mm	820
Ejector Force	t	3.4
Ejector Stroke	mm	120
Locating Ring	mm	100
POWER/HEATING UNIT	UNITS	TM130
System Pressure	kgf/cm3	175
Pump Power	kw	13
Heating Power	kw	9.7
Number of Temp Control Zones	-	3+1
0THERS	UNITS	TM130
Machine Dimensions(LxWxH)	m	4.74*1.23*1.88
Oil Tank Capacity	L	150
Machine Weight	t	3.7
Platen Dimensions
Platen Dimensions

Note: The company reserves the right to modify the technical parameters without prior notice.

---
