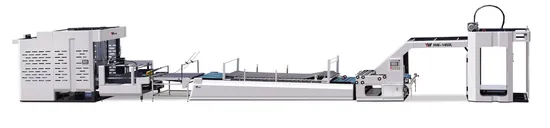

Automatic High-Speed Flute Corrugated Board Box Laminating Machine

Product Description

MS-1450 High-speed flute Laminating machine (Servo-driven)Technical Data

Model		HW-1450
Max. Sheet Size (W*L)		1450*1450mm
Min. Sheet Size (W*L)		450*450mm
Thickness	Top sheet	120~600gsm
Thickness	Bottom sheet	0.5-10mm(B,A,AB,E flute, etc.)
Laminating Accuracy		±1.5mm
Max. Speed		150 m/min (Subject to board quality and specification) e.g. around 10,000 sheets/hour at length 600mm
Power		22kw
Dimension L*W*H		15000x2250x2350mm
Height of Bottom Paper		400mm
Height of Top Paper		1800mm

* THIS CATALG FOR REFERENCE OLY, SPECIFICATION SUBJECTS CHANGE WITHOUT NOTICE
Functions of Flute Laminating machine
This Auto High-speed Flute Laminating machine is capable to laminate and glue combination of corrugated board and board together. After shearing or mold cutting, the laminated products can be made into carton box, advertising board and related products.

Top sheet feeding section

Automatic leading-edge suction feeder ensures stable running at high speed;
No extra adjustment for different sheet sizes, paper weight ranges from 120 gsm to 600 gsm., easy to operate.Sufficient operation space due to no suction feeder above paper piles; Ideal low E-type piling plate and high speed lifting device ensures quick paper piling to save time and increase efficiency.
Pre-loading device by rail equipped as standard.

Bottom sheet feeding section

The lower suction belts driven by Yaskawa servo motor to assure accurate sheet feeding.n
Pneumatic bar can press the front edge of boards for smooth feeding when the boards are curved

Transmission System

Power transmission evenly distributed by gears and belts combination, maintenance free, low noise, high efficiency.

Gluing section

High precise coating stainless steel roller mechanism assures even adhesive applied.
Special mechanism ensures paper stripping off the gluing roller, easy to clean, dismantle and adjust
Three sensors to control the glue volume level automatically.
Side Glue stopper ensures no overflow at high speed and glue re-circulation at high speed.

Control Panel

Machine components

Components	Brand	Origin
PLC	Delta	Taiwan
Touch screen	Delta	Taiwan
Servo motor	Delta	Taiwan
Frequency converter	Delta	Taiwan
Air pump	Becker	German
Motor	Simens	German
Air switch	Sch	France
Button / Switch	MOELLER	German
Photoelectric sensor	Omron	Japan
Contactor	Sch	German
Relay	Omron	Japan
Encoder	Autonics	Korea
Reducer	Liming	Taiwan
High frequency valve	SMC
Bearing	NSK	Japan
Timing belt	GATES	USA
Conveyor belt	Nitta	Japan

---
