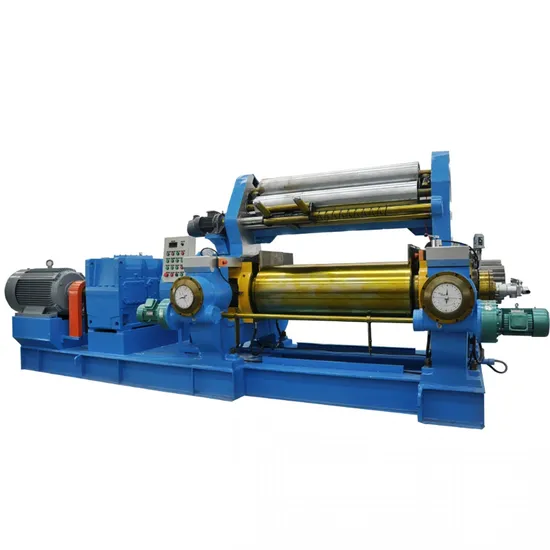

18′′ Rubber Mixing Mill / Rubber Open Mill Silicone Mixing Mill

Product Description

Product Description Application:
Open Type Rubber Mixing Mill is used for plasticizing,mixing,thermal refining and sheeting of rubber(plastic),wildly used for tyre factory,conveyor belt factory,reclaimed rubber factory and shoes factory,etc.

Features:
1) Hardened gears reducer ,low noise ,high quality, competitive price.
2) The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting.
3) This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc.
4) The roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber. 5) Complete Emergency stop &interlock protection system with reverse running function ensures a 100% safety
6) High efficiency, energy saving and brand new mill design significantly reduces installation space.
7) Rollers are made of NiCrMo alloy steel through centrifugal casting, hardness is around HS76.
8) Roller bearings are adopted with ZWZ, best brand in China, other brand is optional upon requirement.
9) Roller bearing supports and glands are made of superior casting steel through annealing treatment.
10) Frame is made of casting iron through annealing treatment, steel welding structure is also available.
11) Bedplate is integral welding structure, made of superior steel through annealing treatment.
12) Rducer adopts with precision hard gears secures high torque, low noise and extra long service life.
13) Speed ratio gears are made of 42CrMo through heating treatment. Product Parameters

Model	XK-160	XK-250	XK-300	XK-360	XK-400	XK-450
Working diameter of rolls(mm)	160	250	300	360	400	450
Working length of rolls(mm)	320	620	750	900	1000	1200
Working linear speed of front roll(m/min)	9	15.1	15.73	16.25	18.65	24.5
Speed ratio of front and rear roll	1:1.35	1:1.1	1:1.17	1:1.25	1:1.27	1:1.27
Max. gap (mm)	4.5	7	10	10	10	10
Max. Capacity per batch(kg)	1-2	10-15	10-20	20-25	18-35	25-50
Driving motor power(kw)	5.5	18.5	22	37	45	75
Overall size(L*W*H) mm	1080*796*1415	3400*1350*1500	3580*1550*1695	3940*1780*1740	4200*1850*1870	5200*2380 *1770
Around weight(tons)	1.1	3.5	5.2	6.5	7.6	12.0

Model	XK-550	XK-560	XK-610	XK-660
Working diameter of rolls(mm)	550	560/510	610	660
Working length of rolls(mm)	1530	1530	2000	2130
Working linear speed of front roll(m/min)	22.5		30	28.6/25.8
Speed ratio of front and rear roll	1:1.2	1:1.2	1:1.098	1:1.24 1:1.09
Max. gap (mm)	15	15	15	15
Max. Capacity per batch(kg)	50-65	50-65	90-120	100-150
Driving motor power(kw)	110	110	160	180/250
Overall size(L*W*H) mm	6320*2180*1880	6500*2300*2000	6475*3146*2035	7465*3662*2750
Around weight(tons)	22	22	34.5	43/47

Packaging & Shipping Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional manufacturer of rubber machines for over 20 years.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, tire reclaim rubberr machine, butyl reclaim rubber machine, EPDM rerclaim rubber machine, rubber powder machine, rubber mixing production line,etc.

We enjoy good repuation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business realtions and develop domestic and international market jointly on the base of equality and mutual benefits.

Our Main Products:
Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc Automatic & Semi-automatic waste tire recycling machine Rubber calender machine: 3 roll & 4 roll calender Rubber extruding machine: cold feed extruder & hot feed extruder Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,etc

---
