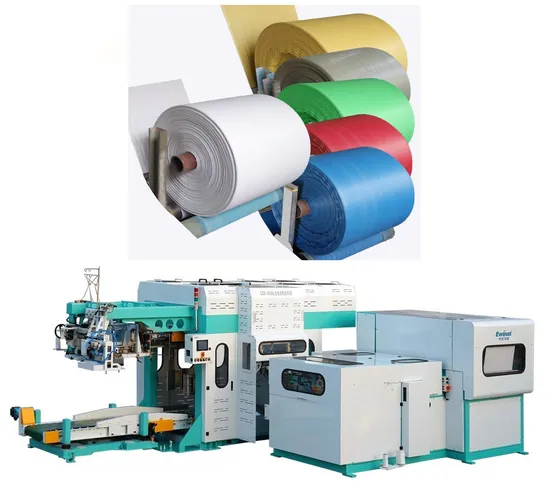

Automatic Flour Bagging Machine with Packing Belt and Sewing

Product Description

Product Description
Product Description
Welcome to Anhui Yongcheng Electronic Mechanical Technology Co., Ltd. Main Technical Performance of the Packaging Unit: Expertly engineered for seamless automatic packaging, our unit is designed to boost efficiency, cut labor costs, and offer user-friendly operation.
Product Features:
Automatic packaging streamlines operations and enhances productivity.
Innovative design significantly reduces labor requirements.
Simple, intuitive operation ensures user convenience.
Technical Parameters: Features comprehensive technical specifications, suitable packaging materials, and optimal equipment operational conditions.

No.	Project	Parameter
1	size (length x width x height)	6208.5×3672.5×2191mm
2	Power	AC380V±10%, 50Hz, three-phase five-wire system, 12kW, Grounding form: TN-S
3	Maximum production capacity	Bran, secondary flour, DDGS, cottonseed meal, rice bran meal (420-480) bags/hour Soybean meal (660~720) packs/hour
4	Packaging range	Soybean meal 50~70kg Bran 40kg Secondary powder 50kg	Cottonseed meal 50kg Rice bran meal 60Kg DDGS 50kg
5	Work pressure	(0.5~0.7)MPa
6	Compressed air consumption	333L/min(0.5MPa)
7	Material temperature	(0~40)ºC
8	Working temperature	(0~40)ºC
9	Noise level	≤80dB(A)
10	Dust removal air pressure	(-0.01~-0.03)bar
11	Dust removal air volume	V=20m³/min(adjustable)
12	Bag type	Roll bag
13	Bag material	Non-laminated woven bag
14	Label size	L97mm×W57mm, kraft paper material.
15	Packing bag specification (roll bag)	Bag roll diameter (mm): ≤1200mm: Single bag length (mm) a: (1050~1240)mm; Single bag width (mm) b: (650~800) mm;
16	Pocket closure	Sewing machines, Folding machines
17	Applicable materials	Soybean Meal, Bran, Second Meal, DDGS, Cottonseed Meal, Rice Bran Meal, Poultry Feed

Note:
Our packaging machine features an optional weighing unit to enhance functionality.
Ensure roll bags have precise and evenly spaced printing. The font must clearly contrast with the bag's body color for maximum visibility.
For unparalleled packaging excellence, rely on Anhui Yongcheng Electronic Mechanical Technology Co., Ltd. Our machine offers an optional weighing unit for enhanced convenience. The roll bag's consistent print ensures clarity, with font colors that vividly contrast the bag's background. Upgrade your packing process with our dependable, efficient solutions.
Automatic Packaging Machine Description
Features
State-of-the-art fully automatic packaging machine.
Performs automatic bag creation, loading, opening, inspection, weighing, filling, sealing, and label application seamlessly.
Boasts a high level of automation for superior performance.
Employs a continuous supply method for efficient woven bag production.
User-friendly design with interactive touch screen and precise PLC control system.
Incorporates a fault self-diagnosis function for reliable operation.
Ensures high safety with a secure closed structure and interlocking device.
Utilizes patented bag-opening technology with powerful vacuum adsorption.
Features servo motor and gear transmission for precise and adaptable maneuvers.
Automatic lifting conveyor offers extensive lifting height and robust carrying capabilities.
Equipped with an advanced weighing system utilizing three sensors for stability and reduced interference.
Crafted with precision by Anhui Yongcheng Electronic Mechanical Technology Co., Ltd.

---
