3000*2000mm Big Worktable Size Steel Plate Drilling Flange Machine

Product Description

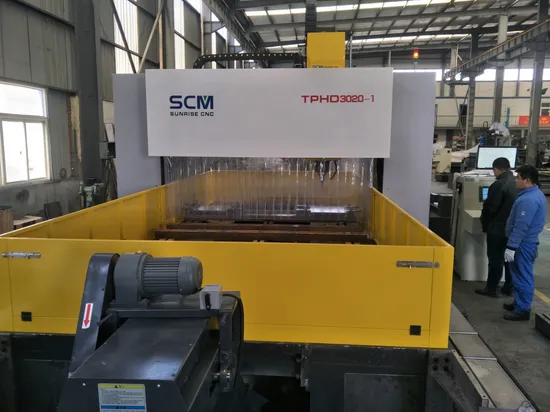

TPHD3020 High Speed CNC Drilling Machine for 3000*2000mm Metal Plate and Flange Workpiece Processing
Applicable Industry:
Mainly used for drilling tube plate, clapboard, flange and large plate in petrochemical, boiler, wind power, flange industries and also for connection plates in building, bridge, heat exchange, iron tower industries.
Product feature:
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry's two sides is driven synchronously via AC servo motor and precise ball screw pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ball screw pair of big pitch respectively.
3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts Taiwan precision spindle (inner cooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts FAGOR8055 CNC system of Spain or SIEMENS CNC, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6.It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure inner cooling pump and low-pressure outer-cooling pump, which are used for inner-cooling or outer-cooling of cutter.
7. For ensuring the reliability of the lathe, the key components use high quality imported products. See the main spare parts list for details.
Specifications:

Parameter Name	Item	Parameter Value
Max. size	L X W	3000X2000mm
Max thickness		250mm
Work table	Width of T slot	28/500mm
Vertical slide type drill head	Quantity	1
	Main spindle taper hole	BT50
	Max drill diameter	φ50mm
	Main spindle speed	30-3000r/min
	Motor power of spindle	22kW
(X axis) Gantry longitudinal move	Max. stroke	3000mm
	Moving speed of X axis	0-8m/min
	Servo motor power of X axis	3kW
(Y axis) Power head transversal move	Max stroke	3000mm
	Moving speed of Y axis	0-8m/min
	Servo motor power of Y axis	3kW
(Z axis) Vertical slider feeding	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis	3kW
Positioning accuracy	X/Y axis	≤0.08mm/ Full length
Repositioning accuracy	X/Y axis	≤0.04mm
Hydraulic system	Hydraulic pump pressure/flow rate	6.5MPa /25L/min
	Hydraulic pump motor power	3kW
Pneumatic system	Compressed air pressure	≥0.4MPa
Chip cleaning and cooling	Chip cleaner type	Plate chain type
	Chip cleaner no.	1
	Chip cleaning speed	1m/min
	Chip cleaner motor power	0.75kW
	Motor power of inner cooling water pump	3kW
	Motor power of Outer cooling water pump	0.75kW
Automatic lubricating system	Lubrication pressure	2MPa
	Lubrication point oil injecting amount	0.1mL
	Lubrication period	6-10min
Electric system	CNC system	FAGOR8055 or SIEMENS
	CNC axis NO.	4
Whole power of motors		Approx. 55kW
Overall size	LxWxH	Approx. 8150X6500X3600mm
Weight	Approx. 34 t

Sunrise CNC Machine is manufacturer of cnc machines, if you have more request let us know freely:

---
