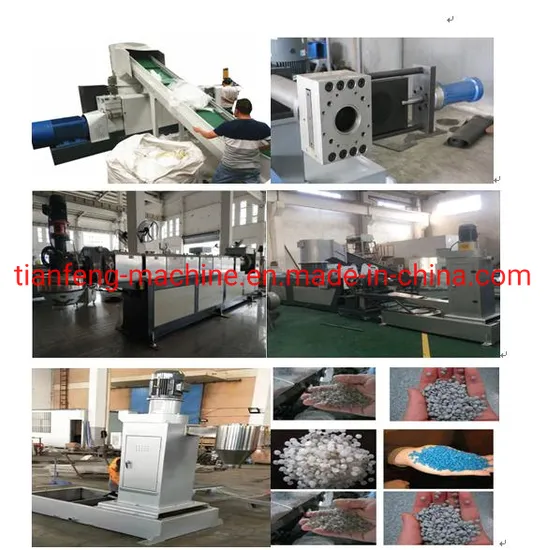

Plastic Granulator Machine

Product Description

This machine is used for processing recycling clean PP/PE woven bag, plastic film or another broken old plastic to make them into plastic grains that will be used as raw material again. The screw and Barrel of this machine are made of 38CrMoAlA and done treatment of Nitrogenation.
Application:
To process waste PP/PE plastic into reusable material, to reduce loss of material.
Advantages:
High efficiency
Low maintenance cost
Operator friendly
Best economic benefit
Composition of the Granulator

Standard items 01) First extruder 02) Second extruder 03) Filter & die 04) Cooling water tank 05) Pelleter 06) Electrical and control system

Optional items 1) Vented-screw for first extruder 2) Single hydraulic screen changer 3) Double hydraulic screen changer

Technical Data

Model	SJ-FJ-100A	SJ-FJ-100B	SJ-FJ-130A
Raw material	PP/PE	PP/PE	PP/PE
First extruding screw type	100/12	100/16	130/15
Second extruding screw type	100/8	100/10	130/10
Rotational speed of screw	50 - 60r.p.m.	50 - 70r.p.m.	50 - 70r.p.m.
Extrlusion capacity *	20 - 60kg/h	50 - 100kg/h	100 - 150kg/h
Motor power of first extruder	11kw	18.5kw	30kw
Motor power of second extruder	5.5kw	7.5kw	7.5kw
Motor for pelleter	0.37kw	0.5kw	1.5kw
Heating power	12kw	24kw	42kw
Power supply	380V / 3P / 50Hz / A.C.	380V / 3P / 50Hz / A.C.	380V / 3P / 50Hz / A.C.
Overall dimension (L×W×H)	4500×2000×1100mm	5500×2500×110mm	6000×3000×15

---
