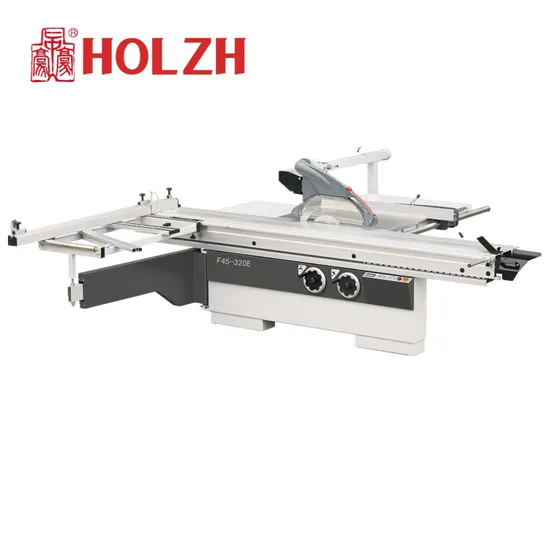

Woodworking Machinery Panel Precision Cutting Plywood MDF Solid Wood Sliding Table Panel Saw

Product Description

Model	F45-320E
Dimensions of sliding table	3200*430mm
Max sawing thickness	95mm
Max. length between saw and rip fence	1250mm
Power of main saw spindle	5.5kw
Rotary speed of main saw spindle	4400/5600r/min
Diameter of main saw	Φ350mm
Diameter of main saw spindle	Φ30mm
Power of grooving saw	0.75kw
Rotary speed of grooving saw	8500r/min
Diameter of grooving saw	Φ120mm
Diameter of grooving saw spindle	Φ22mm
Tilting saw blade	45°
Dimension	3200*1100*840mmm
Weight	800kg

Function:
Apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, MDF board, organic glass plates and solid wood and others with wood structure and similar hardness
Characteristic:
1Manual control for saw blade lifting and tilting 0-45°
2Digital display can be accurate to 0.1 degree
3 Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient
4Sturdy and quiet operational internal structure: the whole finished assembly spindle is adopted dynamic balance processing. The case reinforce iron parts provide as powerful guarantee for the quiet operation
5Crosscut ruler is with V design which eliminate the gap
6Luxurious dust hood: although the effect of under dust sucking is very good, the luxurious overhead dust hood can make a little bit of overflow dust disappearing

	Round steel bar Sliding table is with solid double T-slot and multi-point locking system make it more convenient.
	Digital display saw tilt can be accurate to 0.1 degree.
	Sturdy and quiet operational internal structure, the whole finished assembly spindle is adopted dynamic balance processing.
	Crosscut ruler is with V design which eliminate the gap ,ensure the cutting precision, , the plate is firm and the pushing plate is flexible.
	Manual control for saw blade lifting and tilting 0-45º.
	The case reinforce iron parts provide as powerful guarantee for the quiet operation.

---
