Product Details
Product Description
Product Description
ARO Ingersoll Rand pneumatic diaphragm pump products are widely used in the chemical, pharmaceutical, food, sewage, paper, shipbuilding, paint, mining, dry powder, electroplating and surface treatment, oil and gas, semiconductor and ceramic industries. Chemical industry pneumatic diaphragm pump is mainly used for conveying acid, alkali and organic solvent, the pneumatic diaphragm pump specific self-priming ability, also can be used as a barrel pump, basically can finish material suction within the barrel, shipbuilding, mining and wastewater treatment are mainly used for conveying water, oil, and also can be used as a plate and frame filter feed pump, In the shipbuilding industry mainly using pneumatic diaphragm pump self-priming ability (up to 8 meters) and larger through the larger particles of 9.5 mm, to extract under-bin wastewater, coal mine is mainly using pneumatic diaphragm pump idle running, do not need to separate people watch, also because it is driven by compressed air, do not need electricity, explosion-proof and safer. Electroplating and surface treatment, semiconductor is mainly the use of pneumatic diaphragm pump strong corrosion resistance, pump body material PP, PVDF, diaphragm PTFE, to transport strong acid (HCL. Ingersoll LAN pneumatic diaphragm pump product series to fully meet customer needs, caliber of 1/4,1/2,1,11/2,2,3 inches, pump body material is aluminum alloy, cast iron, stainless steel, polypropylene, polyvinylidene fluoride, diaphragm material is butadiene rubber, fluorine rubber, mountain rubber, polytetrafluoroethylene.
Ingersoll Rand pneumatic diaphragm pump applicable occasions and advantages:
1. It is suitable for the transportation of dangerous materials, such as precious liquid, high risk, high corrosion and other dangerous materials. The pneumatic diaphragm pump of the pump has no dynamic seal structure, it is completely isolated from the outside world, no leakage;
2, suitable for the transmission of various liquids in flammable and explosive environment, because the pneumatic diaphragm pump is not used to generate electric spark without heat.
3, suitable for the transport of valuable liquid, high risk, high corrosion and other dangerous materials, due to the fixed sealing structure of Ingersoll Rand diaphragm pump, completely isolated from the outside world, no leakage;
4, suitable for oil fields, mines, construction sites, solid wastewater, no blockage, no overload, no leakage and other dangerous working conditions.
5, suitable for no foundation, small area, flexible easy installation, economic and applicable portable, portable occasions to transport all kinds of materials.
6, suitable for high purity and high cleaning materials, because there is no need for lubrication, no need for lubrication, no need for lubricant to pollute the material. Such as pharmaceutical intermediates, products, laboratory agents, etc.
7, suitable for unstable chemical characteristics of fluid transport, because of its very low shear force. Such as transport photosensitive materials, flocs and so on.
8. It is suitable for feeding pump of plate frame and wing filter press.
Performance Advantages:
1. Maximum flow + minimum pulsation and gas consumption = best performance;
2, bolt structure connection, wide material selection range, so that the compatibility of the fluid and leakage to the maximum;
3, modular structure, reduce the number of parts, make maintenance easier, reduce maintenance time and cost;
4, no spark can be generated after grounding, no heat is generated in the work, the machine will not overheat;
6, the shear force of the material is very low: how the suction force is generated in the work, so the agitation of the material is minimal, suitable for the transfer of unstable materials.
7, Ingersoll Rand pneumatic diaphragm pump has a unique patent air valve, no dead point. The vent will not freeze.
666170-344-C 1.5 inch PTFE aluminum alloy
66617B-344-C 1.5 inch stainless steel PTFE
66617B-3EB-C 1.5 "stainless steel mountain road rubber
66617C-344-C 1.5 inch cast iron PTFE
66617C-3EB-C 1.5 "cast iron mountain road rubber

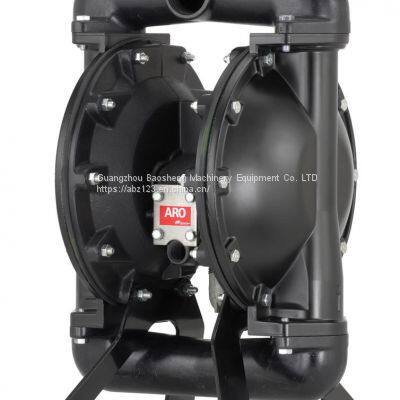

1-1/2 "metal pump
Shell material: aluminum alloy, stainless steel, cast iron
Maximum flow: 340.7LPM
Maximum pressure: 8.3Bar
Fluid inlet: 1-1/2" NPTF or 1-1/2" BSP
Fluid outlet: 1-1/2" NPTF or 1-1/2" BSP
Air inlet: 1/2-14NPTF-1
Maximum dry suction height: 5.8m
Maximum particle diameter available: 6.4mm
Weight: 23.4-38.3kg (depending on model) cast iron air motor plus 10.4kg
>>
