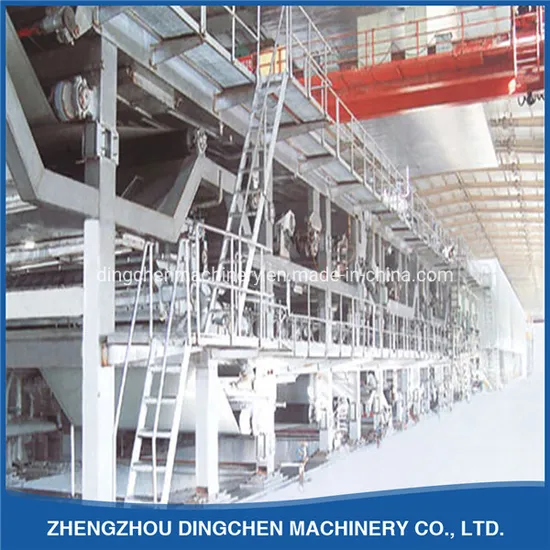

1800mm A4 Paper Notebook Paper Making Machine 8-10 Tons/Day

Product Description

1800mm A4 Paper Notebook Paper Making Machine 8-10 tons/day
Technical parameter

1	Raw material	wooden pulp;waste paper,white paper off-cut from printing factory;or mixed use
2	Output paper	Printing paper, writing paper,Cultural paper
3	Output paper weight	50-100gsm
4	Net paper width	1800 mm
5	Capacity	8-10 T/D
6	Working speed	60-100 m/min
7	Design speed	55-150 m/min
8	Rail space	2900mm
9	Drive way	Alternating current frequency conversion adjustable speed ,section drive

Main equipment structure:
1.Fourdrinier section: 8500mm×2000mm fourdrinier cloth,net pattern is weld by steel,the surface be covered stainless steel.Φ600 roller with Sn one set .Suction box is welded by HMWHDPE, be sucked on the surface(6 sets).
2.Press section: Φ,550×2300mm×2900mm natural marble roll 1 set,Φ500mm×2300mm ×2900mm rubber roll 1 set, rubber hardness HSD 92ºC±2. pneumatic pressure device.
3.Dryer section: Φ2000mm×2400mm×2900mm dryer can 1 pc,Φ500mm×2400mm×2900mm pressure roll 1 set, rubber hardness HSD 92ºC±2. pneumatic pressure device.
4.Dryer group: Φ1500mm×2300mm×2700m dryer can 5 pcs, blade 5 sets, dry carpet device.
5.Calender section:
1880 three roll calendar ,
Φ450mm×2400mm×2700mm Bottom roller
Φ300mm×2400mm×2700mm In roller
Φ400mm×2400mm×2700mm Upper roller
6.Reeler section: 1800 horizontal pneumatic reeler 1 sets
7.Rewinding section: rewinding machine 1 sets

Company Information
Zhengzhou Dingchen Machinery Co., Ltd., located in Central China, is a professional machinery manufacturer focusing on the R&D and production of paper making machines.Our products include paper making machines,pulp making machine,parts and paper converting machines such as kraft paper machines,corrugated paper machines,tissue/toilet paper machines,office paper machines, newspaper machines and so on. Our factory gathers and trains many essential technicians and management system to ensure all products meet the quality of ISO and update constantly!
Our products have been exported to many countries and regions, such as America, Egypt, India, Fiji, Iran, Ghana ,Paraguay, Russia, Syria,Pakistan, Tanzania, and Uzbekistan. Our products and services have won customers' consistent affirmations.have won customers' consistent affirmations.We have a large scale of products regarding paper machinery, including:A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure screen, screen basket, pulp pump etc.)B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper machine, head box, cylinder mould, dryer cylinder, roller etc.) C.Paper making finished devices (Paper calender, pope reel,size press, paper rewinder etc.)Meet customers' requirements and exceed customers' expects.We wish to found long-termcooperation with your companyTechnical Advantage 1.Experienced producing team2.Advanced technological strengthProduct Advantage 1.Through the international authentication2.The same material the most preferential price3.A lot of varieties for the customer to chooseService Advantage 1.Technical consultation2.Project evaluation3.Detailed design of factory4.Installing and testing the whole production line5.Training engineers and workers6.Supplying spare parts for long timeThe business process1.send your requirements:raw material,capacity,paper grammage2.we make the solution to you3.come visit and negotiate4.sign contract5.first payment6.production7.pay spare money8.delivery9.installation ,training,test run10.production consultlation Packaging & Shipping
