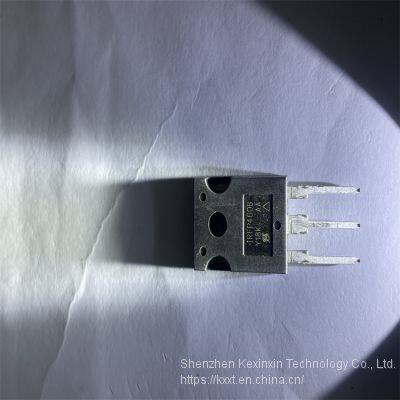

IRFP460BPBF Vishay Semiconductors MOSFET 500V 250mOhm@10V 20A N-Ch D-SRS

Product Details

Product Description

Product Description
Factory
Mfr. #:
IRFP460BPBF
Manufacturer: Vishay
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 500 V
Id - Continuous Drain Current: 20 A
Rds On - Drain-Source Resistance: 250 mOhms
Vgs - Gate-Source Voltage: - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage: 2 V
Qg - Gate Charge: 85 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 150 C
Pd - Power Dissipation: 278 W
Channel Mode: Enhancement
Series: IRFP
Packaging: Bulk
Brand: Vishay Semiconductors
Configuration: Single
Fall Time: 56 ns
Forward Transconductance - Min: 12 S
Height: 20.82 mm
Length: 15.87 mm
Product Type: MOSFET
Rise Time: 31 ns
factory pack quantiy: 500
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 117 ns
Typical Turn-On Delay Time: 24 ns
Width: 5.31 mm
Unit Weight: 0.211644 oz

---
