Flow Weight and Flow Rate Detect Machine

Product Description

Scope of Application

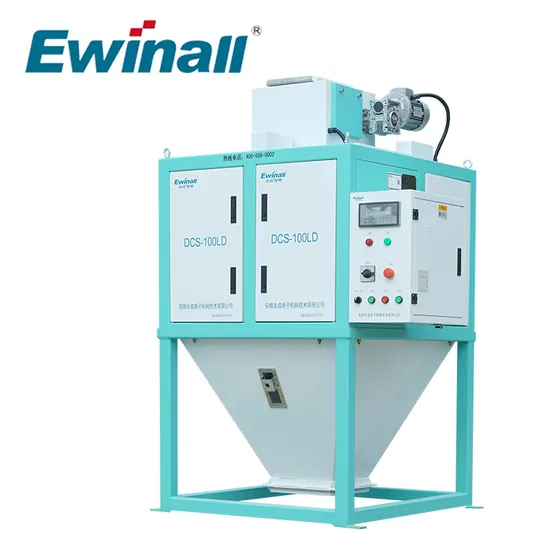

DCS-LD2-S series electronic flow scale assembly is a high-speed quantitative metering equipment that is applied to granular materials with good fluidity and can achieve better feed control. It is suitable for the measurement of production raw materials in grain processing, chemical enterprises, grain depots, ports, etc.

Features
Specially designed three-sensor support. This structure eliminates the problems of stress point offset and signal distortion caused by uneven distribution of materials in the weighing hopper. The specially designed sealed studio of the sensor completely isolates the corrosion and wear of the sensor by rice flour, dust, and water vapor, which greatly prolongs the trouble-free operation time of the equipment. The action mechanism is driven by a unique motor, which does not require a working air source. There are manual and automatic control modes, which can be manually operated to control the feeding and feeding mechanisms respectively, so as to facilitate the cleaning of agglomerated and blocked materials. After the "target value" setting is determined, the operator only needs to start the "automatic" button, and the flow scale will automatically enter the continuous "measurement and discharge" operation immediately. Friendly man-machine interface, simple and convenient equipment operation, reduce labor intensity, improve the intelligent level of workshop operation, intelligent storage of production reports, and data communication functions. High-precision weighing sensor and quantitative controller are adopted. The controller adopts high-performance A/D converter with a conversion rate of 240 times per second and an input sensitivity of 0.5μν/d. It has high measurement accuracy and good stability. It has the functions of automatic statistics, printing and data communication of output. The parts in contact with the material are made of stainless steel, which is corrosion-resistant and prolongs the service life of the equipment.
Technical parameters

Model	DCS-50LD2-S
Display method	Color touch screen
Division value	10g
Level of accuracy	X0.5
Measuring capacity (kg/h)	≤20000(Paddy)
Power consumption	0.9kW
Working environment	Relative humidity≤90%, temperature (0~40)ºC
Power requirements	AC220V±5% 50Hz;AC380V±5% 50Hz
Dimensions (mm)	1031×1130×1769

Remarks: Measuring capacity refers to the data when using paddy materials under specified conditions. Equipment components

Component name	Brand
Weighing control instrument	GM
Load cell	Toledo (USA) or HBM (Germany)
Touch screen	MCGS
Servo motor	Xinje
Reducer	ZIK
Proximity switch	ELCO (Switzerland)
Relay	IDEC (Japan)

Detailed Photos

Company Profile
Ewinall Company, founded in 2000, has 24 years of experience in packaging scale and packaging automation design and manufacturing, the company adheres to the core values of "innovation, stability, respect, excellence", for the food industry packaging automation and make packaging simpler for the enterprise vision, strengthen research and development investment and service team building, To automate the food industry.
The company has more than 40 R & D personnel, 2 R & D buildings and workshops, respectively in Lu 'an City and Nanjing City have R & D bases, at the same time in China and Thailand set up service centers, service personnel more than 70, to provide customers with 7*24 online and offline services.
The company has a production base of 100,000 square meters, more than 100 professional and technical personnel, more than 50 sets of ordinary electronic scales per day, and 5-10 sets of automatic packaging machines, which can fully ensure the delivery of quality and quantity.
FAQ

1. Where is your factory and when was it established?
Lu'an city, Anhui province, from 2000.
2. Which countries are your products exported to?
Indonesia, Philippines, Vietnam, Thailand, Cambodia, Myanmar, Bangladesh, India, Pakistan, Iran, Russia, United States, Mexico, Ecuador, Colombia, Peru, Bulgaria, Poland, Germany.
3. What products do you have?
We have rice packaging machines, feed packaging machines, grain packaging machines, manual packaging machines, fully automatic packaging machines, vacuum packaging machines, robot palletizing machines, and conveyor lines.
4. What materials can the machine pack?
Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Powder Wood Pellet, Barley, Oats, Maize, Rye, Safflower, Sunflower, Rapeseed, Linseed, Sorghum, Lupins, Alfalfa Seed, Navy Bean, Canary, Peanuts In Shell, Canola, Peanut Shelled, Canola Meal, Rice Long Paddy, Cement, Rice Med Paddy, Chick Laying Mash, Rice Long Brown, Chickpea, Rice Med Brown, Cotton Seed, Rye Grain, Cowpea, Flax Seed, Sawdust, Horse Pellets, Sesame, Lucerne Pellets, Lupin, Triticale, Mung, etc.
6. How do you provide after-sales service and installation?
We can provide online guidance, or our local distributor can serve you.

---
