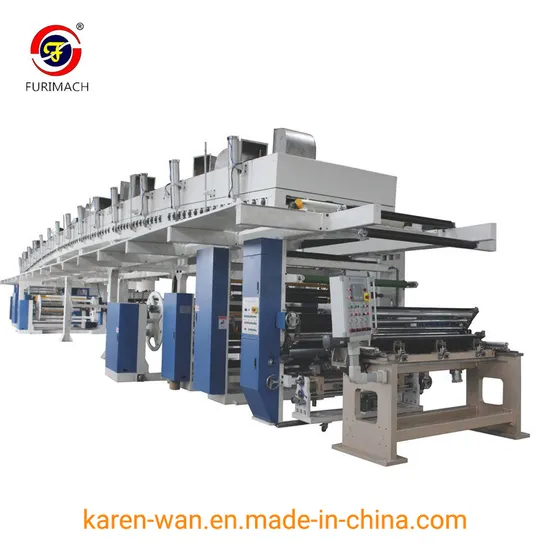

PE (Polyethylene) Coating Machine Protective Film Making Machine

Product Description

PE Protective Film Coating Machine Application: Suitable for coating PE protective film.
Feature
1. Siemens PLC control system with touch panel operation.
2. Double-station unwind without shutdown. Splice automatically to reduce waste.
3. Double gravure rollers coating head design. Two times of coating realize at one time.
4. Separate tension control in closed loop, with more stable production tension, no material stretching or deformation.
5. Arched oven design (conveyor belt/guide roller). Independent and precise temperature control for partitioned area.
6. Side top opening type of oven, easy for operation and cleaning.
7. Web guide control by servo motor, with smooth rewinding.
8. Four-shaft/ Double-shaft surface rewinding, with automatic splicing and roll change. Rewinding electronic protective film without air bubbles.
Notes: Machine size, power, speed, heating type, etc. are customizable. All our coating machines support remote help.

Technical parameters

Max. substrate width	1000mm	1300 mm	1600 mm	2800 mm
Machine speed	20-150 m/min
Unwind diameter	Maxφ800mm
Unwind type	Double-station auto unwinding
Coating type	Gravure roller coating (straight & reverse)/two-roller transfer coating
Oven length	4 m/*7 28, 4m/section*7 sections, 28m in total (can customize oven cleanliness at class 10,000/class 1,000)
Max. temperature	130ºC
Heating type	Steam/thermal oil/electricity/hot air
Rewind diameter	maxφ300--800mm
Tension range	3~30kg Whole web load
Air source	5Kg Prepared by user
Power source	380V 50Hz Prepared by user
Machine dimension	32000*6500*5500

---
