Product Description

Wolf 1.8 ton mini excavator is designed for small project,garden,farmland municioal work etc,and also can be used in playground or in public parks.
This excavator comes with a small engine and simple design,which makes it easy to maintain.
It is reliable and user-friendly. Capable of digging ,grabbing,drilling,bulldozing,ditch-cleaning and rock-breaking,this is one perfect machine you will definitely need.
Comes with one standard digging bucket.

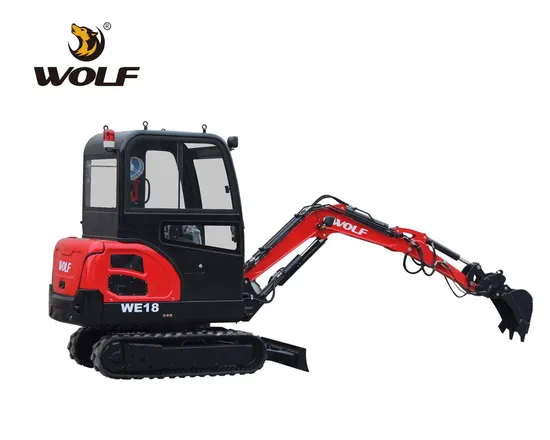

WE18 With Open Cabin	WE18 With Enclosed Cabin

Standard Configuration:- Laidong Euro5 engine,18.8KW- Standard bucket,435mm- Eaton Motor and Travel Motor

Cabin Inside	Standard Joystick
Heater	Transmission System

Two options for the Engine

Laidong Euro 5 Engine, 18.8KW	Kubota D1105 Euro5 Engine, 14KW

Display from different angles:
Specifications:

Engine	Model	Laidong KM
	Type	Direct injection, water cooled, natural intake
	No. of cylinder	3
Main Performance	Swing Speed	r/min	10-12
	Traveling Speed	km/H	2.8
	Grade ability	%	70(35°)
	Traveling Tracking Force	kN	15
	Bucket Digging Force	kN	11.5
	Arm Digging Force	kN	9.3
Hydraulic System	Hydraulic system working pressure	Mpa	16
	Hydraulic Pump	Gear Pump	TJHD
	Hydraulic pump flow	L/min	2×22+8.8
	Swing Motor		Eaton
	Traveling Motor		Eaton
	Fuel Tank Capacity	L	26
	Hydraulic Tank Capacity	L	27
Overall Dimensions	Overall Length	mm	3800
	Overall Width	mm	1050
	Overall Height	mm	2280
	Ground clearance	mm	485
	Track length	mm	1630
	Track width	mm	230
	Undercarriage width	mm	1050
	Undercarriage ground clearance	mm	235
	Dozer Blade	mm	1050×240
Operation parameters	Operation Weight	KG	1800
	Bucket Capacity	m3	0.06
	Max. Digging Radius	mm	3860
	Max. Digging Depth	mm	2050
	Max. Digging Height	mm	3370
	Max. Dumping Height	mm	2390
	Max. Dozer Cutting	mm	270
	Max. Dozer Lifting	mm	235
	Boom Deflexion (Left/Right)	°	75/45
	Tail Swing Radius	mm	1125
	Front Min. Swing Radius	mm	1720

Attachments
Packaging Way:
One set can be loaded by LCL in one wooden box.
4 sets can be loaded in one 20GP container.
8 sets can be loaded in one 40HQ container.
Warranty:
We have 12 months warranty, within 12 months, if any parts broken because of quality problem without human causes, send us related pictures/videos, we will send good parts to you for free, within 7 working days, ensure the problem could be solved as soon as possible. After the warranty period, we will provide zero-profit spare parts support. our professional after sales team is ready to help at any time when there is any problem,and supply of replacement parts could be guaranteed no matter how many years your loader has been used. Choosing Wolf,you will have one year warrant and a life-time service!

---
