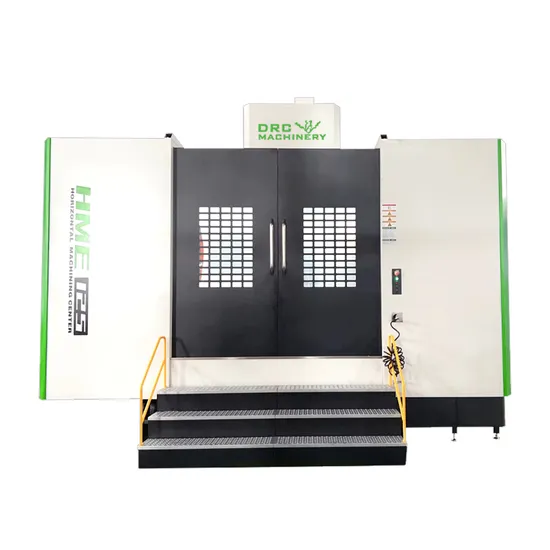

High Precision Horizontal Machining Centers Horizontal Milling Machine Horizontal Machining Center

Product Description

High precision Horizontal Machining Center Horizontal CNC Machining Center Fresadora Horizontal CNC Milling Machine Horizontal Machining Center Application:
Horizontal machining center spindle speed is high, the rigidity is strong, the torque is big. The main shaft is equipped with cooling system, the automatic rotation of the double working table, reducing the auxiliary time, improve efficiency. This series of machine tool performance is perfect, the precision is stable, it is suitable for processing various types of box parts and two dimensional, three-dimensional surface, it is mechanical, automobile, communication, textile machinery, printing machinery, agricultural machinery and other industries processing box type parts of key equipment.

Cnc Milling Machine Hmc630 Cnc Horizontal Machining Center For Sale
Machine tool design ensures high bed rigidity
The finite element analysis of the machine tool structure is carried out in each stage from the basic design to the guarantee of high-speed and high-precision continuous machining. Simulation experiments were conducted on the deformation caused by the machine tool center bearing load to ensure the excellent bending rigidity of the machine tool. DRC's DHM series of horizontal integrated machining centers suitable for heavy cutting processing are designed with large spans in the X-axis guide rail to bring the spindle and the rear support rail closer to increase the cutting rigidity of the column and fully meet customer cutting needs.
Horizontal Machining Center Spindle box, spindle
1. The headstock is specially designed with high-strength, high-rigidity cage and keel rib structure.
2. The main shaft is made of chromium-molybdenum alloy steel, which has been tempered, rough-finished, carburized, aging treated and precision ground finished; it has high precision, strong rigidity, and is not easy to deform.
3. Using high output servo motor (22kw), the maximum speed is 6000rpm. After the main shaft is assembled, it is calibrated by the dynamic balance test.
Cnc Horizontal Machining Center Guide
1. X, Y, Z axis slide rails adopt heavy-duty linear roller guides, which have good rigidity, high precision and long life.
2. The X, Y, and Z axes adopt C3 grade precision ball screws and P4 grade bearings, with good positioning accuracy.
3. The bed rails of X, Y, and Z-axis machine tools adopt metal enclosed telescopic protective covers to ensure that the rails and screw rods are not polluted by the erosion of cutting water and iron filings.
4. The X, Y, Z axis transmission method adopts Japanese (FANUC) servo motor direct transmission, which has the advantages of rapid transmission, stable accuracy, elimination of backlash, improvement of torsional rigidity, elimination of axial error, etc., which greatly improves the positioning accuracy of the machine tool .

Hydraulic: Adopt plunger pump motor to improve work efficiency. The service life of plunger pump motor is longer than that of general system. Lubrication: automatic lubrication system, using closed-pole continuous lubricating machine CEVB-4L, 220V, can ensure enough lubricating oil for each lubrication point; each sliding surface and ball screw are distributed according to the oil path, and the oil volume is controlled separately, and the cycle lubrication time can be adjusted according to Set as needed, with low oil volume control device.
Cooling: The cooling water tank uses a split design, so that the chips are easy to clean and the cooling water is easy to replace.
Iron chip removal: The high-torque screw chip conveyor is installed on the Z-axis, with a high-efficiency chain plate chip conveyor mechanism, which completely solves the problem of chip removal and also solves the effect of cutting iron chip heat on machining accuracy

Model	HME125S	HME125D
Worktable
Table size	1250X1250	1250X1250
Max. load on worktable	5000	3000
Positioning accuracy of rotary table	10/15	10/15
Repeated Positioning accuracy of rotary table	±2/±3	±2/±3
Processing range
Travel for X/Y/Z axis	2100X1600X1500	2100X1600X1500
Spindle nose to worktable center	350-1850	350-1850
Spindle center to worktable surface	110-880	100-1700
Maximum rotating diameter	2000	2000
Spindle
Spindle taper	BT50	BT50
Spindle speed	6000	6000
Spindle motor	22/26	22/26
Drive feed
Fast feed speed(X/Y/Z)	15/15/12	15/15/12
Fast feed speed(B)	10	10
Tool magazine
Capacity of tool magazine	24	24
Max. tool diameter	Φ125	Φ125
Max. tool length	500	500
Max. tool weight	25	25
Tool change time	12	12
Precision
Positioning accuracy	0.015	0.015
Repeated Positioning accuracy	0.015	0.01
Air pressure
Air supply pressure	6-8	6-8
Air pressure flux	350	350
Others
Voltage	65	65
Floor area	6650X5500X4500	10500X5600X4900
(length*width*height)
Weight	33000	35000

---
