automatic glass jar dairy fish-bone herring bone milking parlor for cow

Product Details

Product Description

Product Description
Automatic Glass Jar Dairy Fish-bone Herring Bone Milking Parlor For Cow
Product Description
1. Description of Dairy Herring Bone Milking Parlor For Cow
(1). Dairy herring bone milking parlor for cow is used more for dairy farm through the configuration of the vacuum system and automatic milking system; it's suitable for small, medium and large farm. The range from 2x6 to 2x32 to meets different clients’requirement.
(2). This dairy herring bone milking parlor for cow has high degree of automation, simple operation, low degree of work, low energy consumption, the precision of measurement
Cow Milking Parlor Sheep Milking Parlor
2. Advantages of Dairy Herring Bone Milking Parlor For Cow
(a). The vacuum pump: the pump to milking parlor is as heart to human being, so important that once broken, the milking system will stop working. So we will send an extra pump to you for free. Once the pump have some problem, you can change a good one, so as not to influence milking.
(b). The cleaning system: Which the inner milk dirt attached to the main pipeline is thoroughly cleaned,especially in hot summer, can reduce bacterial content and milk is not easily to go bad.to a great extent,it reduce the loaded and unloaded trouble of cleaning the main pipeline’s inner wall.
(c). Economically: Achieve the purpose of recycling the residual milk attached to the main pipeline.
(d). Enegy saving: Save water and electricity.
Technology parameter
Technical Parameters of Dairy Herring Bone Milking Parlor For Cow

Model	Fish-bone Type
Model	9JY-2*8	9JY-2*12	9JY-2*16	9JY-2*20
Working Vacuum	50Kpa	50Kpa	50Kpa	50Kpa
Pulsation Ratio	60: 40	60: 40	60: 40	60: 40
Frequency	60 ± 3 RPM	60 ± 3 RPM	60 ± 3 RPM	60 ± 3 RPM
Vacuum pump power	5.5 KW	2*4 KW	2*4 KW	2*5.5 KW
Vacuum pump speed	2300L/min	2*1400L/min	2*1400L/min	2*2300L/min
Milk pump speed	8T/h	20T/h	20T/h	20T/h
Milk pump power	2.2KW	4KW	4KW	4KW

Detaild Photos of Dairy Herring Bone Milking Parlor For Cow

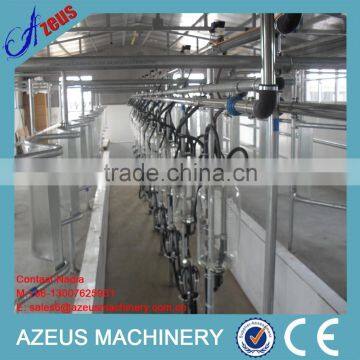

1. Milking parlor The milking parlor is used more for dairy farm such as small, medium and large farm. It is suitable for sheep and cow, etc.
2. Milk collection equipment After finishing milking, the surplus milk will come into the collecting tanks with the help of sponge ball and butterfly valve. It will decrease bacteria and save labor, water and electricity. This system is our unique advantage from other factories.
3. Automatic cleaning equipment Using candles type cleaning nozzle, so it can make cleaning water form vortex inside the milk cup and at the same time improve the speed of flushing water, thus ensure the quality of cleaning.
4. Vacuum pump It also equipped with muffler, the exhaust pipe ,engine frame and installation accessories, etc. Different cow or sheep number of milking parlor, different pumps. We will design the most suitable type for you.
5. Cooling tank When purchasing milking parlor, a milk cooling tank will be needed to store milk. Here is 500L to 10000L milk cooling tank for your choice.
Packaging & Shipping
Delivery of Dairy Herring Bone Milking Parlor For Cow
1. Every order should use a WHOLE container to put goods, as the milking parlor have too many parts.
2. A milk cooling tank is good for you to buy along with the milking parlor together in order to save installation fee for you.
3. After you received All parts for milking parlor, pay attention to put all parts into a sealed room to avoid missing.
Installation Policy of Dairy Herring Bone Milking Parlor For Cow
1. After the buyer received the milking parlor, the seller will send two engineers to the buyer’s site to guide installation, adjust the whole system and train labors within 7~10 days.
2. The buyer should bear the cost include actual expenses for the visa, round-trip tickets, insurance, accommodation and labor of engineers. The labor charge for each engineer is USD80 per day.
3. Tools for installation should be provided by the buyer, the seller will provide detailed tool list.
Payment
We accept different method for payment, just like TT, LC, escrow. You just need to choose one which is conveninet and safe for you.
Company Information
1.Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kind of machinery. Our products has been exported to all over the world, Especially to Europe, North and South America, Africa, East and South Asia, Australia, New Zealand, etc.
2.Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.
3.We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
Our Services
1. The warranty time is one year from the date you get the machine, except the easy-wear parts.
2. If any parts are found defective in quality in the first year, we shall replace it freely.
3. We are responsible for the smooth operation of the machines. If you have any problem during production, just feel free to contact us. We assure you our soonest response.
Contact way

Contact	Nadia
Email	sales6(at)
Skype	ning901016
TM	cn1001241536
Tel.	0086-371-65996917
Mobile	0086-130 0762 5931

Company Profile
Zhengzhou Azeus Machinery Co., Ltd.
Zhengzhou Azeus Machinery Co., Ltd is a professional supplier of the different kinds of food machinery, especially the following products.1. Potato Chips Machine2. Feed Making Machine3. Snack Food Making Machine4. Oil processing machine5. Food Cart6. Food Packing MachineOur company now has more than 200 employees and a wide range of junior and senior engineers, which helped us to serve all of our customers from different countries, including Europe, North America, Africa, East and South Asia, Australia, New Zealand and other countries and regions.Our company has passed ISO9001 certificate. And 60% of our products, such as feed machines, oil processing machines, had the CE certificate. Through our joint efforts, we have gained good reputation from our clients in communication, products quality, delivery, after-service, and other aspects.We are looking forward to establishing a long-term and mutual-benefit business relationship with all of you. We will assure you our competitive price with better quality and service. We believe you will get what you expect from our company.
