Product Details
Product Description
Product Description
Product Description

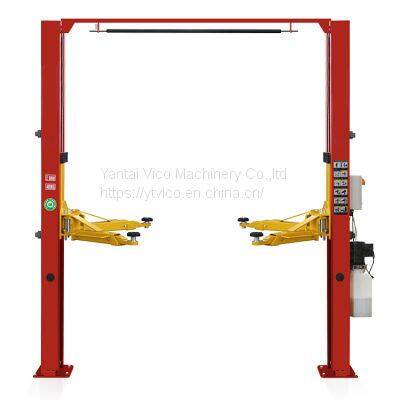

V-LZW-B-2240
(1) Clear floor design, save space.
(2) Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
(3) Electric release.
(4) Rubber pad door-opening protection.
(5) Secure fence protect the toes.
(6) Rubber support pad adopts double helix adjustment height and height increase joint.
(7) Limit switch.
(8) The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional.
Details
Technical specification
Model No.
| V-LZL-B-2240
|
Lifting Capacity
| 4000kgs
|
Lifting Height
| 1850mm
|
Min. Height
| 120mm
|
Pass width
| 2500mm
|
Column width
| 2790mm
|
Total width
| 3320mm
|
Lifting Time
| 50s-60s
|
Motor Power
| 2.2kw-380v or 2.2kw-220v
|
Oil Pressure Rating
| 24MPa
|
Weight
| 650kg
|
Package
Export Standard Package
