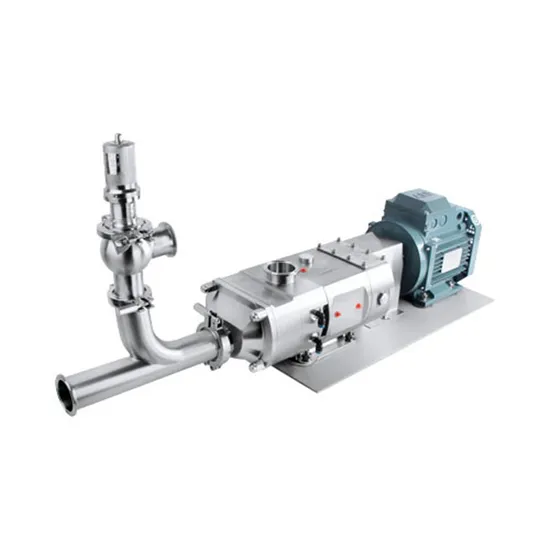

3A Donjoy SS316L Sanitary Twin Screw Gear Pump with Safety Valve

US$3,099.00-14,999.00 1 Piece (MOQ)

Basic Info.

Certification
CE, ISO9001, 3A
Hygienic Level
Sanitary
Transfer Partical
Yes
Hopper
Option
Transport Package
Wooden Case
Specification
LG-L/R
Trademark
DONJOY
Origin
China
HS Code
8413602190

Product Description

Complete Double Screw Stainless Steel Pump with Trolley
Twin screw pump, with strong CIP function, it could be transported solid particles, gas-liquid mixture, media with high or low viscosity and so on. It not only could be used to extract and convey madia, but also could be used in CIP and SIP system. It could reduce pipeline, valve and CIP pump, which improve effiency and reduce cost. Such pump also is equipped with the extra advantage such as: no pulse, no particle damage, high pressure, wide speed range, large flow range and so on.
Advantage
Flexible solution for two-direction reversible, high pressure, high viscosity, large particle, pulse free, liquid delivery
Specification
Item: Twin Screw pump
Contact Material: SS316L
Seal Material: FKM
Max. Flow: 110 m3/h
Speed range: 10-3500 RPM
Mechanical seal: SIC/SIC/FKM(Standard), Single or double mechanical seal
Working temperature: -40~150 degree centigrade
Voltage: 110V, 220V, 380V
Motor: ABB/domestic
Motor Frequency: 50HZ, 60HZ
Available Connection: Clamped, Threaded, Flanged
Standard: DIN, SMS, 3A, RJT, ISO, IDF
Operated: Electic motor
Certificate: 3-A-02-11 (1759), FDA.177.2600, CE-MD/06-42 NO. 705201402401-00
Application Range: Mash, Dairy, food, beverage, pharmacy, cosmetic etc
Packaging Details: Plywood case
