Lab Laboratory Planetary Ball Mill 4 Station Gear Drive

Product Description

Company Introduction
Shanghai Gongtao Ceramics Co., Ltd is specialized in design, manufacture and sale of Lab Pot Mill(including Stirred Mill, Sand Mill). Lab Pot Mill designed by our company is easy to operate, reliable with compact design, which can meet all lab grinding and dispersing requirements, also you can accurately put your experimental result into production models, so that it's a good choice for you to deal with lab samples and research new materials.
Products Introduction
Lab Pot Mill, Stirred Mill and Sand Mill are designed for smashing, grinding, dispersing and creaming metal, nonmetal, organics, Chinese herbal medicine and other powerso it is quore suitable for lab research. The working principe is to smash, grind, scatter the material by making used of high speed rolling of grinding material and specimen in the grinding jar. For it can meet all kinds of technological parameter requirements, imitate various index in production, at the same time, owe to its advantages of small amount, low power consumption and low price, it's the preferred choice for university and research department to proceed grinding crafts, new material and coating research.
Use Direction
1. Load milling medium in ball milling tank, it may cover less than 70% valid volume of milling tank.
2. Put mixed material into ball milling tank (with mill medium balls)slowly, then fasten down the tank cover.
3. Insert the power, turn on starting switch. Adjust power's revolution speed to working speed(frequency converting control 50Hz, motor speed 1400/min), we can figure out power speed according to displayed frequency, speed showed in adjustable-speed motor is the actual speed. Rotate speed of ball milling tank should be calculated on the basis of the deceleration phase ratio of belt pulley and the size ratio between transmission shaft sleeve and grinding tank, and conversion formula is as follows: Motor speed/(deceleration phase ratio of belt pulley*dia ratio between grinding tank and shaft sleeve). Run about 1 minute normally.

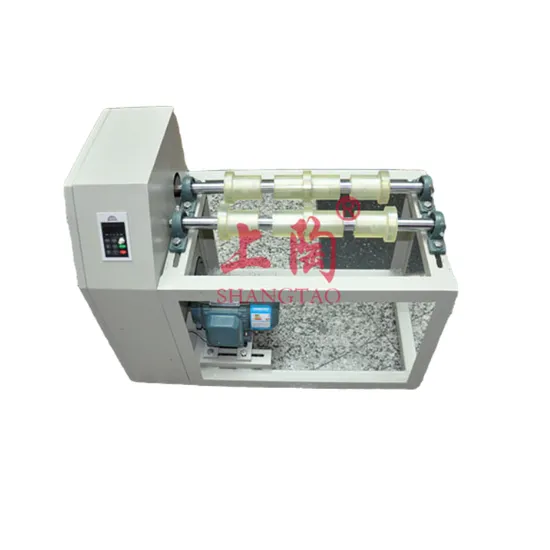

4. If motor is found no abnormalities, then you should put tanks with material in friction roller(glue sticks should be modified when you replace mill tank with different size, and around 120 degrees between two glue intersection angle is advisable. You may pay more attention to the parallelism of two axis adjust it till the rolling of mill jar is steady without derail).
5. Revolution speed should be adjusted to meet technological requirements, run time of ball mill grinding is to be set.
6. Turn off the machine after grinding, then clean and wash ball mill tank and grinding medium for reserve.
Electron Device Operating Instruction:
1. Speed controller: Please refer to speed controller or transducer instruction book for details.
Maintainance Announcements
1. Overweight work is strictly prohibited.
2. Handle gently when operate, turn off at once when motor is unusual.
3. Milling medium in ball milling tank should cover less than 70% valid volume of milling tank.
4. When ball inserting density is too large to rotate(such as steel ball), you may consider to reduce ball inserting rate.
5. Keep motor in a dry and ventilated environment in order to protect it from short circuit and burn.

Station of milling	two jars work at the same tine
Milling jar	Effective 0.5-5L,material: Polyurethane jar, stainless steel, corundum
Application of milling	Grinding medium of corundum or alumina
Max revolution of main roll shaft	490r/min
Power of motor	750 W
Rated milling loading	80 kg ,(including grinding cylinder,g rinding medium and materiel )
Power supply of equipment	220V , 50Hz

FAQs Q: Are you trading company or manufacturer ?
A: We are factory. We had been engaged industrial ceramics for more than 20 years.The quality and service of the products are guaranteed.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-40 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100%T/T before shipping, when the value of the goods is less than $10,000. If over, can be discussed. Accept the payment by ****** insurance order.
Q: Why choose us?
A: OEM and ODM are available. We had customized about 6000 kinds ceramics products for our customer all over the world.
Pre-sale service: Professional technical persons will choose suitable materials for you due to using environment about the ceramic parts.
The sale of services: If you need,we can provide the sample for you to go on testing,and also provide technical help and supports for you.
After-sales service: Accept any repair of the product, help to improve technology for customer. And also provide long-term technical help and support for you.

---
