Hydraulic Self-Loading Concrete Mixer Truck with 4WD on Hot Sales (SL1.7R)

US$28,000.00 1 Unit (MOQ)

Basic Info.

Model NO.

SL1.7R

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

4.8m3/H

Feeding Height

1500mm

Vibrating Amplitude

0.8mm

Certification

ISO9001: 2000, CE

Condition

New

Color

White

Truck Chassis Model

Silon Brand

Type of Drive

4WD

Engine Model

Chinese Wuxi Brand

Rated Power

48kw

Drum Mixing Volume

1.7m3

Gross Weight

3200kg

Concret Ouput

1.2 M3

Front Loading Shovel Capacity

270L

Charge Speed

3 M3/Min

Dimension

5000*1900*2600mm

Transport Package

Nude

Specification

CE, ROHS, SGS, CCC, ISO,

Trademark

SILON

Origin

Luoyang, China

HS Code

8705400000

Production Capacity

500 Units/Month

Product Description

Silon Concrte Feeding mixter Truck Features
1.Mixing volume:1.7cbm
2.Engine:48KW EU-III
3.Chassis:Silon 4x4 WD
4.Discharge speed:4.8cbm/h
5.Rotational speed: 0~14r/min
6.Feed rate: ≥3m³/min
7.Rest rate: <0.7%
8. Imported Hydraulic Systerm/Reducer motor
9. Low Oil Consumption with good economice
10. Concrte Mixter truck: SILON 1.2M3 /1.7M3 /2.0M3 /2.6M3 /4.0M3
Techncial Parameters

Drum Capacity	1.7m3
Discharing Height	1.5m
Production Capacity	1.2m3 /cans 4.8m3/h
Engine	Chinese Sida / Chinese Yunnei
Transmmsion	Turquo Converter, 4WD
Walking Speed	Low Speed :2km/h High Speed: 20km/h
Cabin	Lef-Hand Drive ,Rops, Front Loading Shovle
Hydraulic System	Chinese Hydrulic System
Discharing Direction	180 Degree Rotation (90 Degree Each)
Operation Lever	Electrionilly Control Four-Speed Joystick
Bucket Capacity	270L
Chute	Hydraulic adjustable angle, in order to increase Discharing Length
Water Supplyer System	Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pressure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min
Brakes	Air Brake Dual Independence Circurs
Tyre	12-16.5
Power System	24V
Fuel Tanker	35L
Hydraulic Oil Tanker	120L
Weight	3200kg
Dimension	5000X1900X2600mm

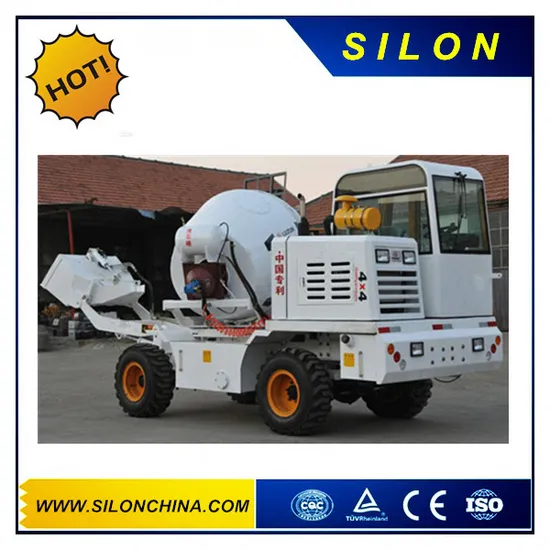

Detailes Photo of the mini Concrete Feeding Mixer Truck ( SL1.7R)
Contact Information
Silon - LuoYang Silon Industrial Co.,Ltd
Tel: 86-379-62270038
Cell Phone: 86-15837919532
Website: silonmachinery.en.made-in-china.com
