Self-Loading Crawler Dump/Side Tipping/Curtain Side Van/Sidewall Semi Trailer Cargo Side Tipping Trailer for Heavy Duty Trucks

Product Description

Product Description
Product Parameters

Overall Parameters
Overall dimensions	13000mm*2500mm*1700mm (depends on trailer model)
Platform Height	1050mm
Front side wall height	400-450mm
Main Beam
Main Beam Height	500mm
Upper Plate Thickness	20mm (depends on final configuration)
Down Plate Thickness	20mm (depends on final configuration)
Middle Plate Thickness	14mm (depends on final configuration)
Side Beam
Material	Q345B Steel
Shape	16mm channel steel
Axle
Axle Number	3
Wheel base	1310mm
Axle load	16T
Tyre
Brand	Tringle, Double coin
Tread	1840mm
Specification	12.00R22.5
Quantity	Accoding to axles
Spare Tire Carrier	1 set
Suspension
Type	Mechanical Suspension
Layer	10
Width of leaf spring	90mm
Thickness of each leaf spring	13mm
Landing Gear
Brand	Fuwa
Material and type	Standard 28T
Other Parameters
King pin	50/90
Brake System	Air chamber T30/30
ABS	kemi/Webco
Tool Box	1 pc
Electrical system	24V Waterproof

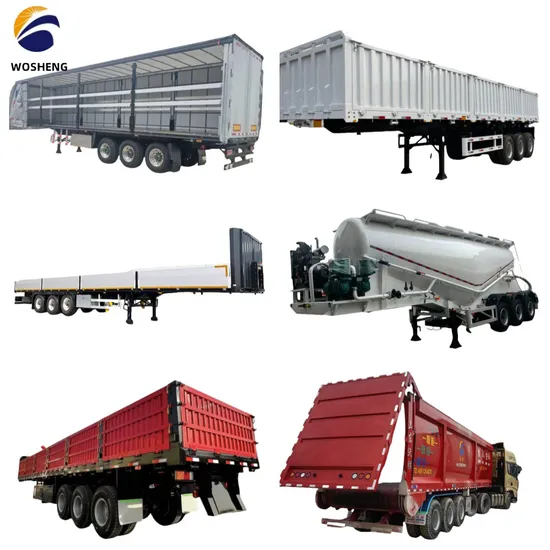

Detailed Photos
Side wall semi trailer, side panels can be removed, can be added to the column, use all kinds of goods.
Side dump semi trailer
V-Type powder tank semi trailer, Bulk Cement/Fly Ash/Flour/Powder Material Transport
Crawler dump semi trailer, transport all kinds of granular goods and clays, unloading easily.
Flatbed semi trailer, multi-purpose trailer
Side curtain semi trailer, curtain can be controlled, which makes it easier to load and unload cargo
Suspention - Anti-Tire AbrasionSpecially designed anti-Tire abrasion suspension system prevent tire deflection after loading and avoids tires to the maximum extent worn out. and easy to disassemble and maintain
Suspension and break systemSuspension: Germany Type or American Type Mechanical and Air bag suspension can be choose. Brake System: T30/30 Spring brakechamber. WABCO valve,ABS/EBS system optional. dual line brake pipe.LED lamp with protective cover
HydraulicHigh quality brand of hydraulic cylinders: appropriate models of cylinders with matching capacities will be used accordingly Axle :BPW/FUWA/Wosheng Axle optional.
Integrated Advanced Low-Alloy Axle Beam,Whole Axle Beam No Welding process.Strong CarryingCapacity and high bending Strength.Axlemaintenance-free could reach 3 Year/400,000kilometers. Company Profile
Shandong Wosheng Semi Trailers
Shandong Wo Sheng Special Vehicle Manufacturing Co., Ltd is a professional semi-trailer manufacturer with more than ten years of production experience. With a professional R & D team, we can according to your needs specializing in the production of customized high quality trailer. We provide the best quality, factory price, timely delivery and perfect after-sales. Please contact us if necessary.
About us Shandong Wo Sheng Special Vehicle Manufacturing Co., Ltd is a company engaged in semi-trailer, truck, used semi-trailer, used-truck, auto parts and new energy vehicles' sales and service. Our factory is Shandong Wosheng Special vehicle manufacturing co.,ltd , which has nearly 8 years of production experience in the trailer industry. Please believe that our professional technology and manufacturing experience can help your transportation be safer and efficient. we can provide high quality products and competitive prices.FactoryOur factory commit to strict quality control and thoughtful customer service, our experienced staff can discuss your requirements at any time to ensure your full satisfaction. We not only want to be perfect in appearance, but also pursue the delicacy of detail. We have advanced modern equipment, strong technical force to ensure customer satisfaction of products and timely delivery.Packaging & Shipping
We will provide you with the best transportation plan to reduce transportation costs and ensure timely delivery of goods.
1.From China port, and carry by container ship, ro-ro ship or bulk ship, the freight cost depends on the volume.
Certifications
Our Advantages
We are your most reliable cooperation partner
We are a national high-tech enterprise and have obtained more than 30 invention patents and utility model patents. We have attracted customers from all over the world, whether choosing the current product from our catalog or seeking technical support for your application, you can talk to our customer service colleagues about your procurement needs.
FAQ
Q1. Are you a factory or trade company ?
We are a comprehensive industrial and trade enterprise integrating product design,scientific research and development, production and sales. Welcome to visit our factory at any time.
Q2. Could you accept special design and specification?
Sure of course. As we all know that the traffic regulations are different in different areas, our professional engineers will design and our well-trained staff will produce according to customer special requirements.
Such as: special Size, special control, or OEM/ODM etc.
Q3. Are you looking for an agent? Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. How to control quality? We set up all process inspection and quality control standard, include raw materials, production process, finished products. Advanced equipment and standard inspection process ensure the quality.
Q5. What services can we provide? Accepted Delivery Terms: EXW, FOB, CFR, CIF
Q6. What logistics ways we can work for shipment?
We can ship all trailer by various transportation tools.
For 90% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc, either by container or RoRo/Bulk Shipment.
For neighborhood countries of China, such as Russia, Tajikistan, Kazakhstan,Mongolia etc, we can ship trucks by road or railway. For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.

---
