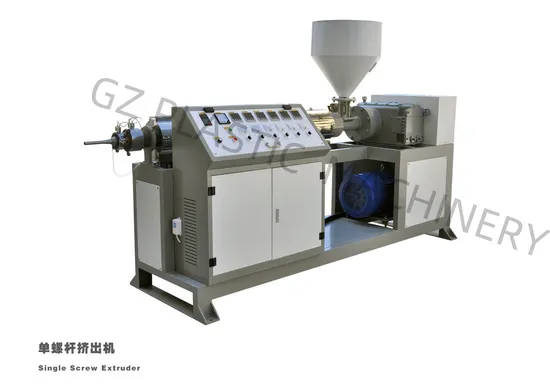

PP/PE/PVC/PA Plastic Single Screw Extruder

Product Description

SJ series Single Screw Extruder has adopted frequency control and can effectively reduce power consumption of transmission process via direct connection ways of motor and reduction gearbox. The screw uses separated type with mixer head way that may strengthen the shear action of material, improve plasticizing effect. This extruder is with good stability and lower power consumption.
Product Description

Main technical parameters:

Model	Screw Diameter	Production diameter	Power	Center Height	Capacity
SJ-30	Φ30 mm	28:1	4 KW	1000 mm	15-20 kg/h
SJ-45	Φ45 mm	28:1	7.5KW	1000 mm	20-35 kg/h
SJ-50	Φ50 mm	28:1	11KW	1000 mm	30-45 kg/h
SJ-65	Φ65 mm	30:1	15-22KW	1000 mm	45-65 kg/h
SJ-80	Φ80 mm	30:1	30-37KW	1000 mm	60-90 kg/h
SJ-90	Φ90 mm	30:1	37-55KW	1200 mm	70-150 kg/h

Packaging & Shipping

FAQ Q: Are you trading company or manufacturer ?A: We are factory. Q: How long is your delivery time?A: Generally it is 20-45 days after receiving the deposit.The special time need discussing the new delivery date . Q: How do you make the quotation for clients?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
1. Type of pipe you want to produce.
2. Pipe diameters.
3. Raw material and its types
If you can send us photos of your samples, it would be highly appreciated. Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .

---
