VS-X710 Portable three phase power quality analysis power quality test power quality energy analyser meter

Product Description

Product Description
China Supplier X710 Portable three phase power quality analysis power quality test power quality energy analyser meter power quality energy analyser meter identify issues with power quality which typically manifest as dips, swells, harmonic distortion, unbalance, flicker, and transients. Power quality determines the suitability of electrical power to drive motors, machines and other end user devices. Poor power quality affects the ability of these devices to operate properly which may cause malfunctions, premature failure or may cause them to not work at all. Most power quality analyzers monitor total harmonic distortion, phase angle, power factor, balance and more to get a complete picture of the system. Like any troubleshooting task, you want the right tools to get the job done. When it comes to power quality, finding, troubleshooting and removing problems with dips and swells, harmonics, imbalance, along with other power quality problems can be difficult. Capturing the information needed to analyze and diagnose is the initial step in solving these power quality issues.

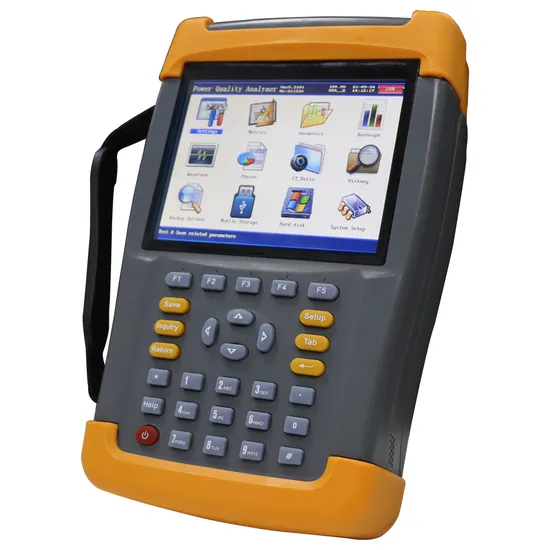

Weshine invented the VS-X710 power quality energy analyser meter is an ideal choice when continuous monitoring of a three phase system is required. It provides metering for current, voltage, real and reactive power, energy use, cost of power, power factor and frequency. Weshine three phase power quality analyser can help you identify and trace anomalies and harmonic distortion problems - even the ones which are the most difficult to find.

PRODUCT INFORMATION
Product Name	power quality energy analyser meter
Channels	3 voltage channels/3 current channels
Voltage Range	10 to 450 V	Current Range(Built-in)	0.05 to 6 A
Current Range*	5 A/50 A/ 100 A/ 500 A/ 1500 A...
MEASURED PARAMETERS	* Power parameters (KW, KVAR, KVA, DPF, TPF)* Energy parameters (KWH, KVARH, KVAH)* Voltage/current unbalance* RMS voltage/current* Total demand distortion* Harmonics* Harmonic ripples* Total harmonic distortion* Flicker* Phase angles* Phase angle deviation ...
Dimensions	160mm*60mm*260mm	Weight	2 kg

* 0.05 to 6 A(up to 1500 A), 10 to 450 V* 3 voltage channels/3 current channels MEASURED PARAMETERS: * Power parameters (KW, KVAR, KVA, DPF, TPF)* Energy parameters (KWH, KVARH, KVAH)
* Voltage/current unbalance
* RMS voltage/current
* Total demand distortion
* Harmonics
* Harmonic ripples
* Total harmonic distortion
* Flicker
* Phase angles
* Phase angle deviationOur Advantages
(1) Energy saving and consumption reduction: The energy consumption of conventional capacitor cabinets can be reduced by 90%. The volume is reduced by about 50%, which can save about 50% of space, copper, silver and other resources, and the power consumption of conductors, contacts, and components can be reduced by about 50%.
(2) Convenient expansion: The power quality analyzer is small in size and simple in wiring. With the increasing power load of electricity users, the device can increase the number of capacitors at any time, changing the inherent defects of cluttered wiring and inconvenient changes in ordinary forms, meeting the needs of enterprise productivity improvement, and realizing installment investment.
(3) Simple wiring: Due to the installation of multiple capacitors in the group cabinet, the production time can be reduced by more than 60% compared with the traditional form, and the connecting lines can be reduced by 80% and the nodes by 80%. The power quality analyzer cabinet is simple and can be used for To be quickly assembled at the application site.
(4) Convenient maintenance: The LCD screen outside the three phase power quality analyser cabinet will continuously display the types of protection actions, including overvoltage, undervoltage, overcurrent, overtemperature, three-phase unbalance, etc.; intelligent low-voltage power capacitors have self-diagnosis properties, It can display fault information such as switches, capacitors, intelligent modules, and network communications on the display screen, which is conducive to quickly finding out on-site problems and repairing them.
