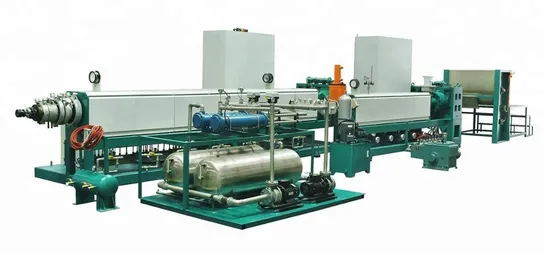

High-Performance EPS Plastic Extrusion Machinery for Efficient Production

Product Description

Unveiling the Premier Plastic Sheet Extruder Machine - Now Available for Purchase!

1.Production Process
Our Expand Polystyrene Sheet Extruder stands out as a leading-edge sheet production machine, equipped with dual screws and utilizing a sophisticated gas foaming technique for optimal results.
This extruder expertly processes General Purpose Polystyrene (GPPS), injecting a state-of-the-art gas foaming agent during production. The Winder efficiently compiles the sheets into convenient rolls, ready for various applications.

2.Product Use
Our versatile sheet is tailor-made for thermoforming applications, transforming into fast food containers, egg trays, and disposable bowls with ease. Its superior heat and sound insulation properties make it indispensable in architectural uses such as decorative boards and car interior ceilings.

3.Advantages
1) Engineered with a precise and robust screw mechanism
2) Incorporation of precision-crafted elements
3) Guaranteed no leakage for seamless operation
4) Utilization of top-tier parts from renowned brands: Mitsubishi, Siemens, Lewa
5) Delivers consistently even thickness and a flawlessly smooth sheet finish
6) Capable of storing a complete range of technical parameters for efficiency
7) Advanced PLC control system for superior operational management


MODEL PROVIDED
4.Technical Parameters

Foam Polystyrene Sheet Extruder Main Techincal Parameters
Style No. Parameters	Unit	HLSJPS-120/150	HLSJPS-100/130	HLSJPS-130/170
Capacity	kg/hr	370-500	250-310	450-550
Thickness	mm	1.2-6	1.2-6	1.2-6
Width	mm	1000-2000	1000-2000	1000-1500
Foaming Ratio	times	11-30	11-30	12-25
Linear Speed	m/min	5-40	5-40	5-40
Mounted Capacity	kw	540	250	625
Pressure of Cooling Water	mpa	≥0.2	≥0.2	≥0.2
Cooling Water	t/h	18	13	20
Compressed Air Pressure	mpa	0.7	0.7	0.7-0.9
Compressed Air Amount	CBM/min	1.5	1.1	2
Butane Injection Pressure	mpa	1	1	1
Weight	ton	22	18	32
Installation Size	m	35*4.55*3	33*5*3	40*4.5*3

5.After Sales Service
1) We proudly offer expert engineers to visit your facility for comprehensive installation and training support.
2) Enjoy a one-year warranty for main machine components, with post-warranty parts available at competitive pricing.
3) Benefit from our 24-hour online support service, ensuring assistance whenever you need it.
