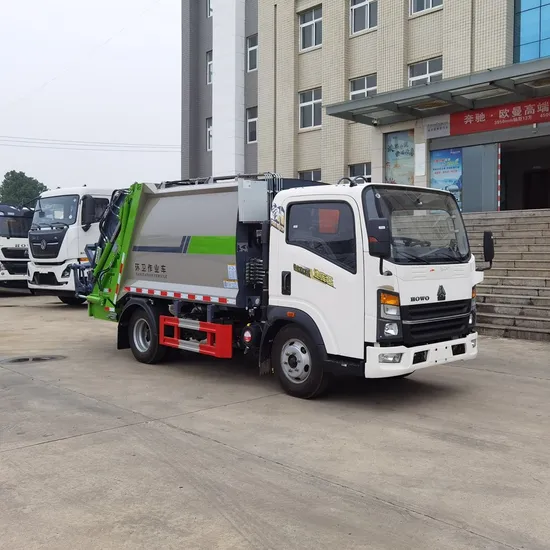

Compressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, mainly used for urban sanitation operations, aiming to improve the efficiency of garbage treatment and reduce space occupation during transportation. Its design has three functions of garbage compression, storage, and transportation, which can load more garbage in the same volume, reducing transportation frequency and operating costs.
| ITEM | PARAMETER | UNIT | DATA |
| Whole Vehicle | Vehicle Model | | CLW5071ZYS3 |
| Overall Dimensions | mm | 5998*2150*2450 |
| GVW | kg | 7360approximate |
| Curb Weight | 5250approximate |
| Rated Load | 2000pproximate |
| Front/Rear Hanging | mm | 1250/3020 |
| Approach/Departure Angle | ° | 20/15 |
| Leaf Spring | pcs | 11/9 |
| Drive Wheel | | 4*2 |
| Chassis Model | | ZZ1047D2813C145 |
| Manufacturer | | China National Heavy Duty Truck Group Jinan Commercial Vehicle Co., Ltd |
| Wheel Base | mm | 2800 |
| Tire Specification | inch | 7.00R16 |
| No. of Tires | pcs | 6+1 spare |
| Engine | Engine Type | | YN4100QBZL(EuroIII) |
| Manufacturer | | Kunming Yunnei Power Co., Ltd |
| Engine Horsepower | hp | 110 |
| Displacement | ml | 3298 |
| Emission Standard | | Euro III |
| Gearbox | No. of Gears | | Manual 6-speed with overdrive |
| Cab | passengers | | 2 |
| steering wheel | | LHD |
| ROW | | Single row |
| Other | air conditioning |
| Equipment | Garbage bin volume:4500L |
| The maximum garbage capacity of the rear garbage loading hopper is 1.3 cubic meters |
| Hydraulic system control: electric and manual control |
| Garbage loading method: rear hanging bucket flip frame (hanging 240-liter garbage bin) or large floor hopper |
| Sewage tank capacity: 100L |
| Material of garbage bin: manganese steel |
| Thickness of garbage bin:Bottom plate:6mm;side plate: 4mm; top plate: 4mm |
| Body exterior color: customizable according to customer requirements |
