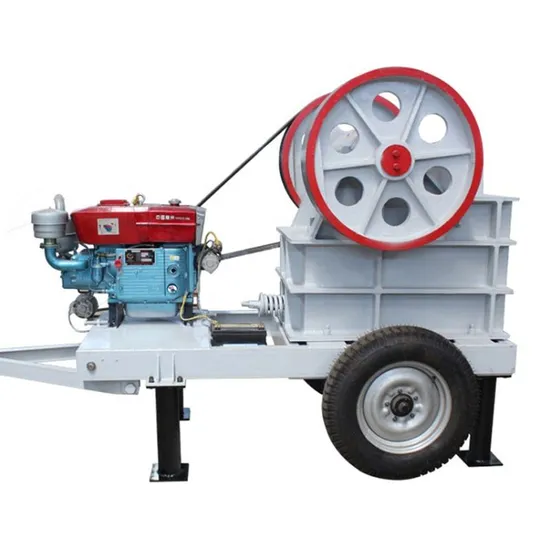

Mini Sand Stone Rock Gold Ore Diesel Engine Mobile Jaw Crusher Machine

Product Description

Product DescriptionJaw Crusher, also known is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material. This series of jaw crusher has the characteristics of large crushing ratio, uniform product size, simple structure, reliable work, easy maintenance and economical operation.Jaw crusher is widely used in various industries, such as mining, road and railway construction, building construction,water conservation and chemical industry etc. It could crush kinds of minerals and rocks with compression strength less than 320MPa,such as quartz, granite, basalt, limestone, river stone, sandstone, shale, iron ore, copper ore, gold ore etc.Jaw crusher can break the waste construction waste into 10-20mm small stones, but also can separate the steel bar in the construction waste. Reuse of waste can be achieved.Principle of jaw crusher:This jaw crusher uses motor as its power. Through the motor's wheels, the eccentric shaft is driven by the triangle belt and slotwheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixedjaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.The two verticalmanganese jaw plates create a V-shaped cavity called the crushing chamber, where the top of the crushing chamber is larger thanthe bottom.Product Parameters

model	max feeding size(mm)	capacity(t/h)	output size(mm)	power(kw)	weight(kg)
pe150*250	125	1-3	10-40	5.5	1160
pe200*300	180	2-6	15-50	7.5	1240
pe200*350	180	3-10	18-60	11	1520
pe250*400	210	5-20	20-80	15	1570
pe400*600	340	14-36	40-100	37	5800
pe500*750	425	30-80	50-120	45	9000
pe600*900	500	56-192	75-200	75	18900
