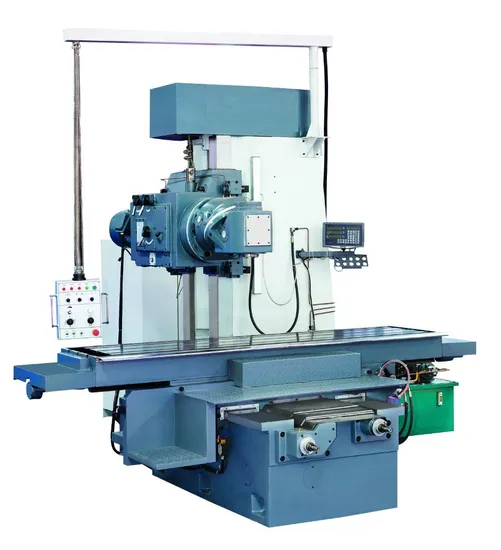

X713 Manual Metal Vertical Bed Milling Machine

Product Description

Product Description
The main performance characteristics:
Using MEEHANITE cast iron,
Using rectangular guide machine is Rigid good,
Work table and guide rail through the ultra audio spark quenching.
Milling head can be rotated 30 degrees,
Import frequency conversion and frequency conversion technology to make the spindle more convenient
Application:
This machine is a kind of general metal cutting machine tool.
Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter,
molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves,
holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries
of the ideal processing equipment.

Specifications		X713
Table size	mm	1525x320
Table stroke	mm	1050x470
T-type slot numbers / width /space	mm	3-14-80
Distance from spindle axis to column guide way	mm	450
Distance from spindle nose to table surface	mm	70-570
Spindle taper		ISO40
Spindle quill travel	mm	127
Spindle speed range	rpm	70-3620
Spindle motor power	KW	4
Overall dimensions	mm	2565x2045x2290
Machine weight	Kg	2300
