Product Description
Product Description
It is suitable for printing paper, paper board, high-grade self-adhesive label and so on.

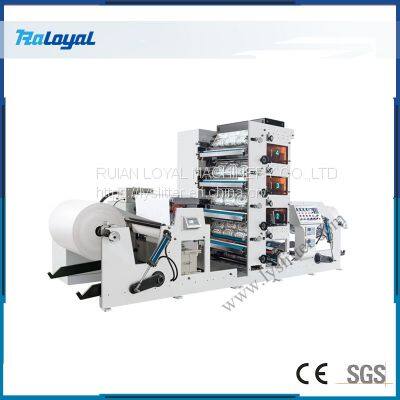

Features of Thermal Paper Straw Paper Film Printing Machine
Use:
It is suitable for printing paper, paper board, high-grade self-adhesive label and so on.
Characteristic:
The product has the characteristics of wide printing range, no pollution of ink, high economic benefit and fast printing speed.
1. Main motor adopts imported electric frequency speed regulation.
2. Automatic tension control is used for unwinding.
3. Ultrasonic rectification is used for web guide.
4. Part of the printing, using ceramic anilox rollers, has the characteristics of long service life, wear resistance, corrosion resistance.
5. Printing unit adopts 360 degree circumscribed alignment adjustment. The printing units can be individually joined or loosened so that other printing units continue to print.
6. Each printing unit is equipped with infrared drying device.
7. Machine with die cutting function.
8. Automatic metering.
9. Parking roller can be automatically disengaged, and low speed dynamic convey to prevent dry ink.
10. Rolls for paper, printing, automatic infrared drying, die cutting and rewinding finished once.
Specifiction Thermal Paper Straw Paper Film Printing Machine
Model
| RY5-320
| RY5-450
| RY5-560
| RY5-850
|
Printing speed
| 65m/min
| 65m/min
| 65m/min
| 65m/min
|
Printing color
| 5
| 5
| 5
| 5
|
Paper max width
| 320mm
| 450mm
| 560mm
| 560mm
|
Max printing width
| 310mm
| 440mm
| 550mm
| 550mm
|
Max unwinding diameter
| 600mm
| 600mm
| 600mm
| 600mm
|
Max rewinding diameter
| 550mm
| 550mm
| 550mm
| 550mm
|
Printing perimeter
| 175-320mm
| 175-320mm
| 175-320mm
| 175-320mm
|
Precision
| ±0.1mm
| ±0.1mm
| ±0.1mm
| ±0.1mm
|
Ruian Loyal Machinery Co, Ltd., is located in Wenzhou is a professional slitting machine manufacturer. We provide Slitter Rewinder Machine, High Speed Slitting Machine, paper cup flexo printing machine and so on. Want to know about Raloyal? Please contact us.
>>
